1. About this demo

This demo is to show the installation for various sensors in Dragino Office, Dragino Facotry & ThingsEye Office. It covers various types of sensors such as Temperature, Humidity, CO2, Water Flow, Vibration & many many.

User can check this Public Share Link and see the dash board for this demo. The dash board keeps updating, while the main structure will keep the same. It has Three Level DashBoard as decribe below.

  • First Level - Overview for all branches: This dashboard shows all branches overview status and location.
  • Second Level - Branch Level: This dashboard shows all sensors installation and status in the selected branch.
  • Third Level - Sensor Level: This dashboard shows the detail reading for a specify sensor

Level1.png   Arrow.png   Level2.pngArrow.png  2024-09-26 23-47-06.png

The rest of this chapter will provide the introduction for how to set up similiar solution.

2.Basic configuration instructions

When you start a complex IoT project, you first need to learn some basic configuration methods for ThingsEye.

Here are some instructions you need to know：

Dashboard creation and some basic configurations:https://wiki.thingseye.io/xwiki/bin/view/Main/How%20to%20import%20and%20use%20the%20dashboard%3F/#H3.2.2.1CreatA0alarm

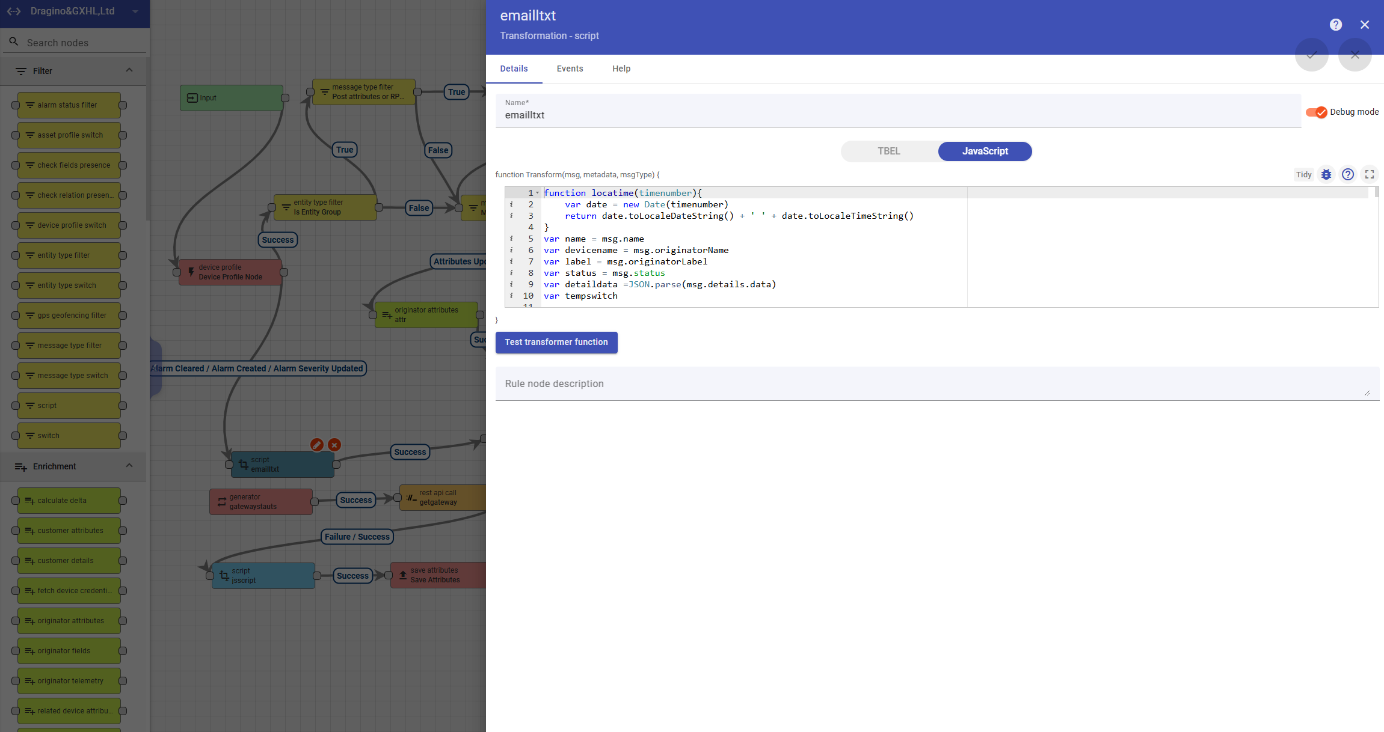

Rule chain creation:https://wiki.thingseye.io/xwiki/bin/view/Main/Basic%20configuration%20of%20rule%20chains

Devices connected to thingseye：https://wiki.thingseye.io/xwiki/bin/view/Main/How%20to%20connect%20my%20devices%20to%20ThingsEye%3F/

3.overview

3.1 MHierarchical architectureore features

Before we start a project, we first need to understand the organizational structure of the project. Only with a clear outline can our project construction process be smoother

Assets：Dragino Office  、Dragino Factory

Devices：

Dragino Factory：temperature and humidity measurement×7、Gateway×1

Dragino Office：temperature and humidity measurement×2、Air quality measurement×4

3.2 Dashboard architecture

In this demo, the dashboard is divided into three layers, namely: home page, asset, and device.

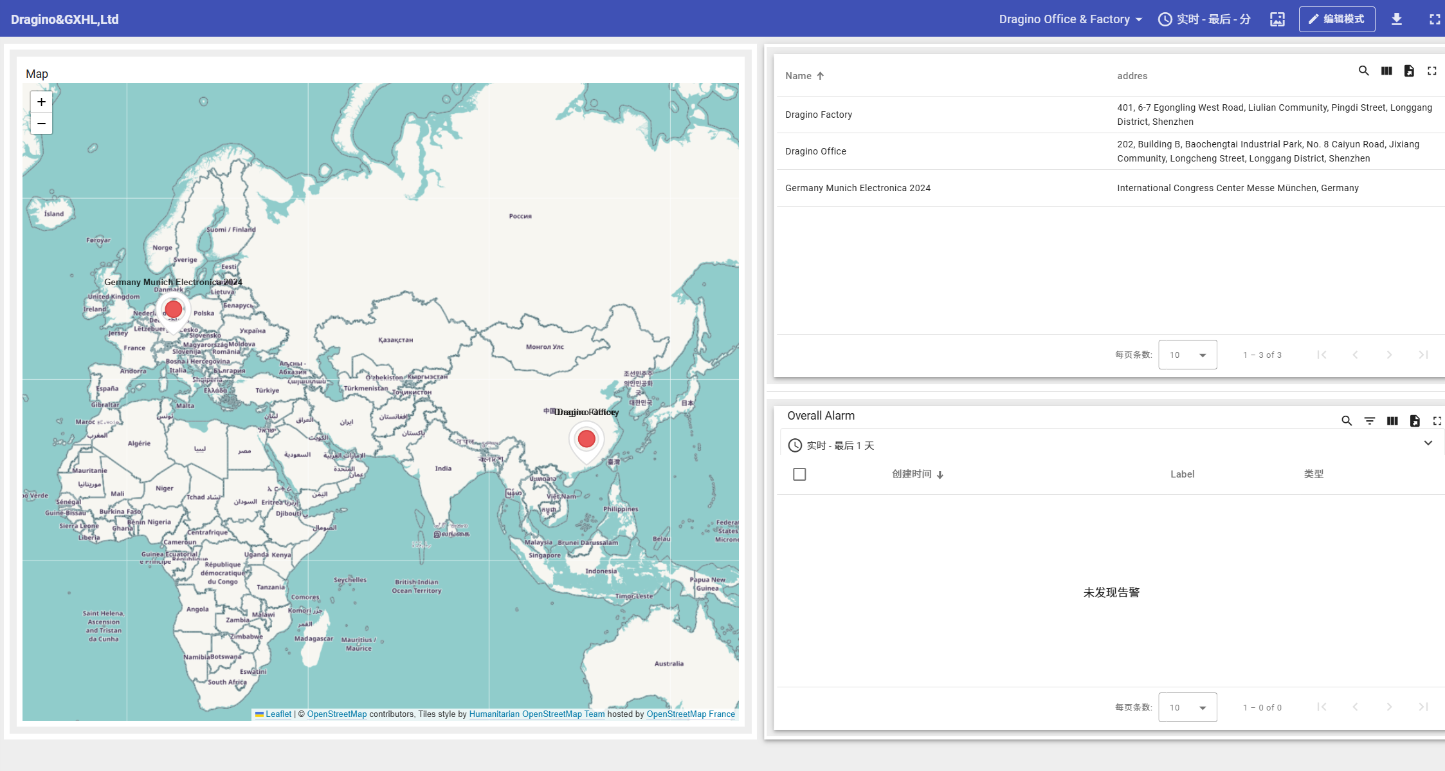

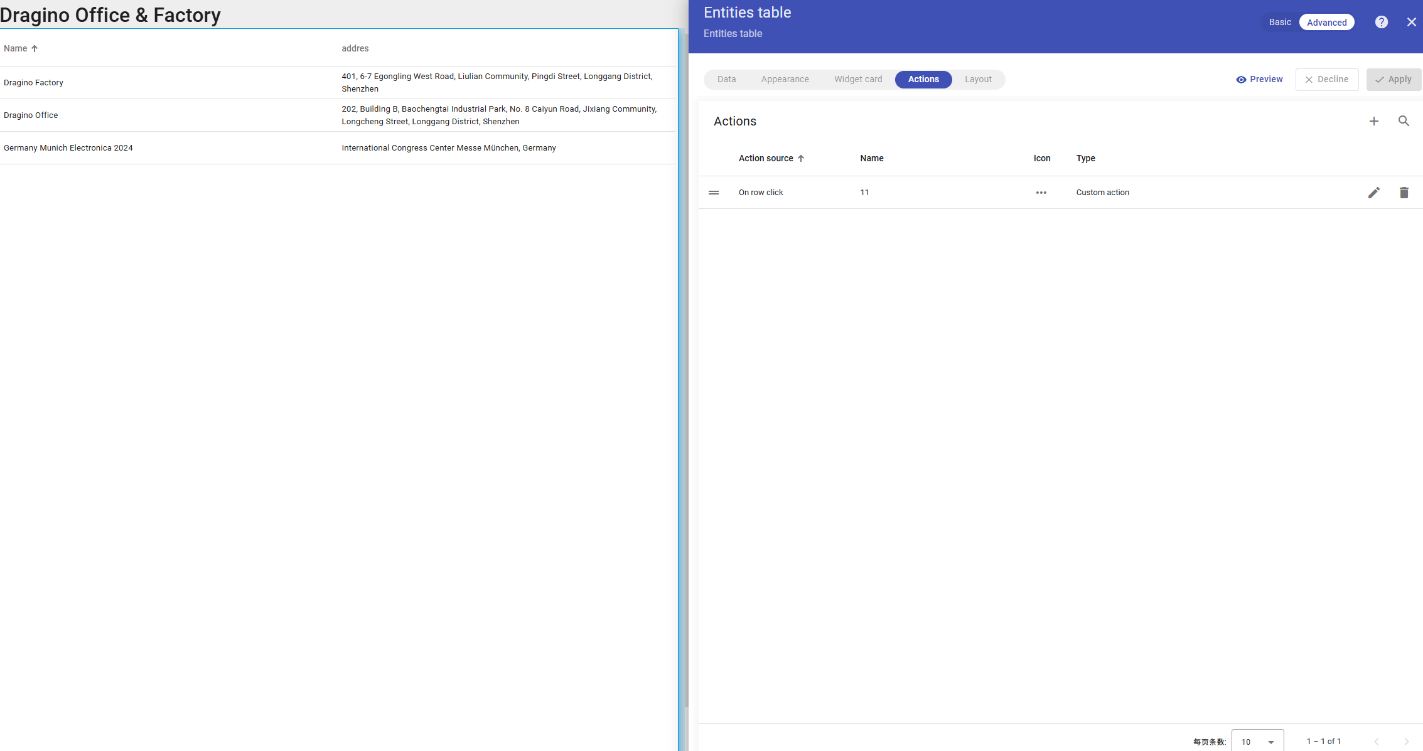

home page:It includes three parts: map, asset list, and all alarm. From this interface, you can see how many factories, offices, and so on there are

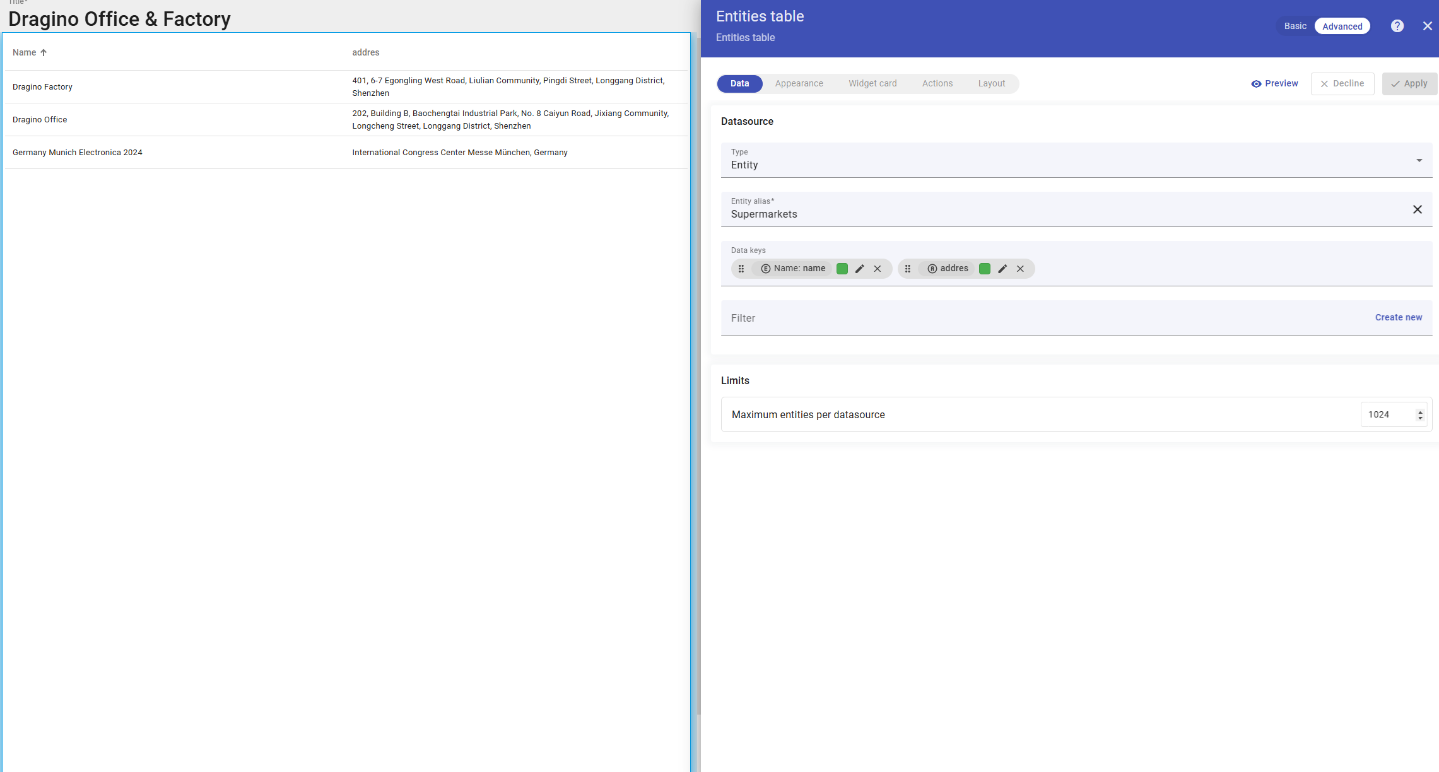

asset:It includes three parts: asset map, device list, and asset alarm. From this interface, you can see how many sensors are deployed in the office or project, where they are located, and their alarm status

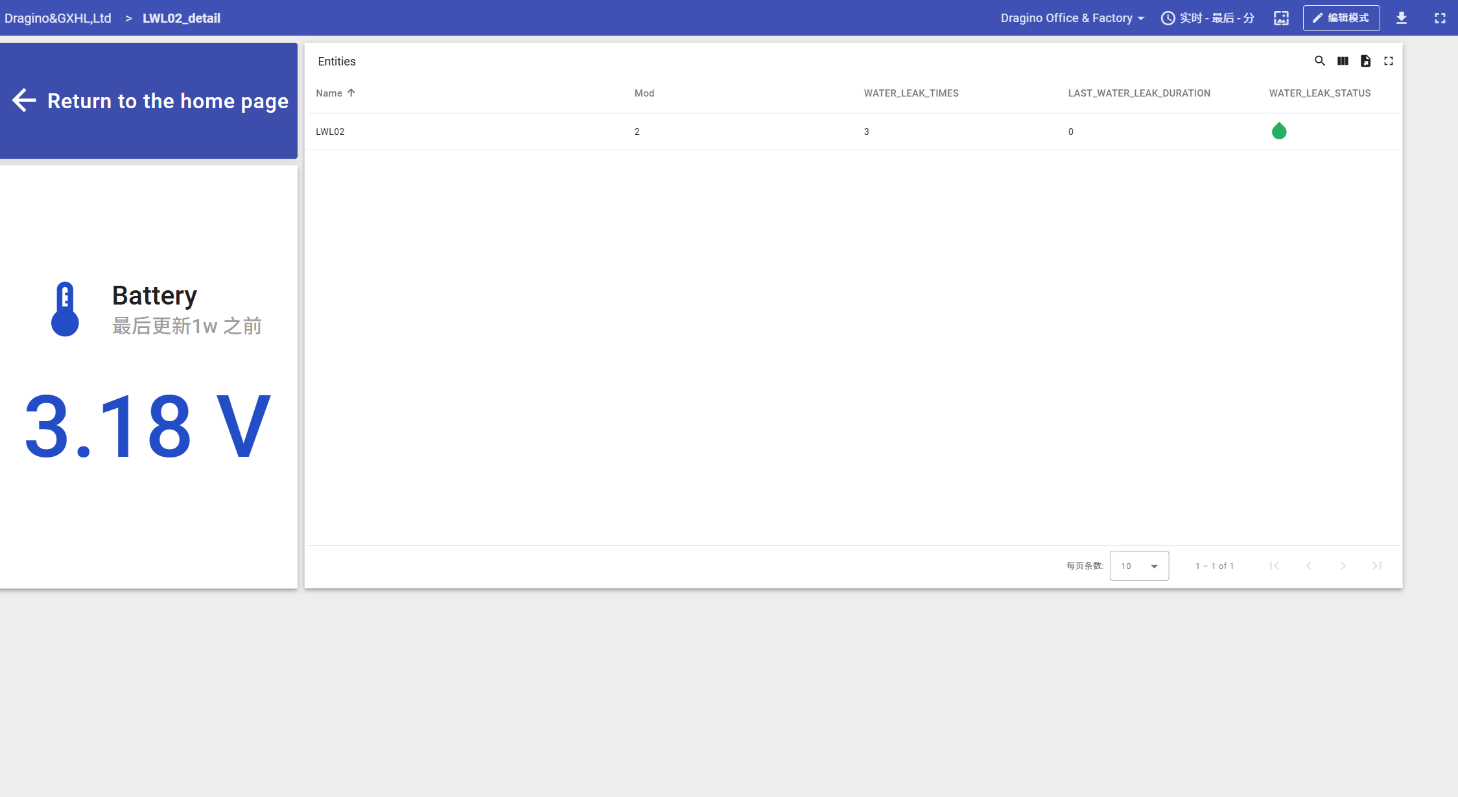

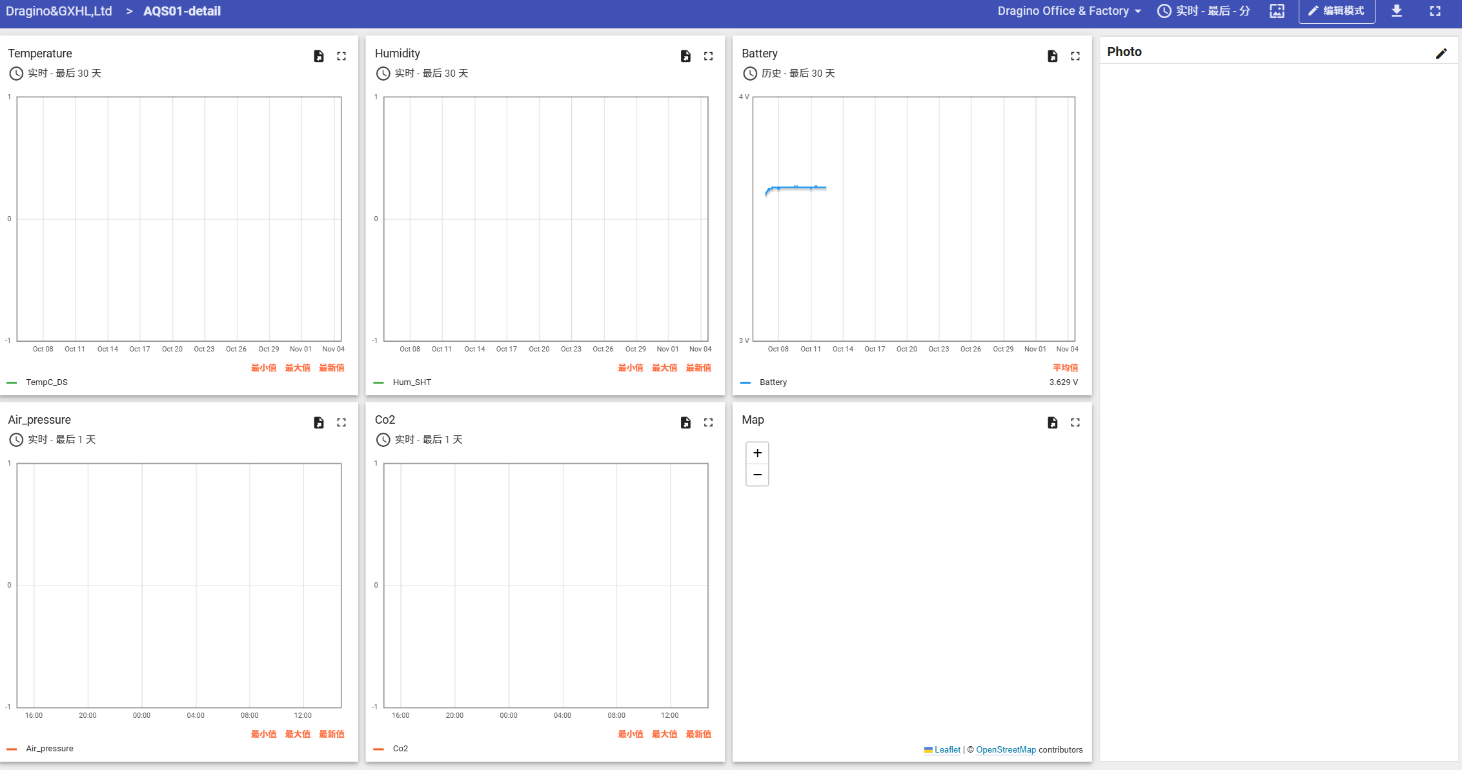

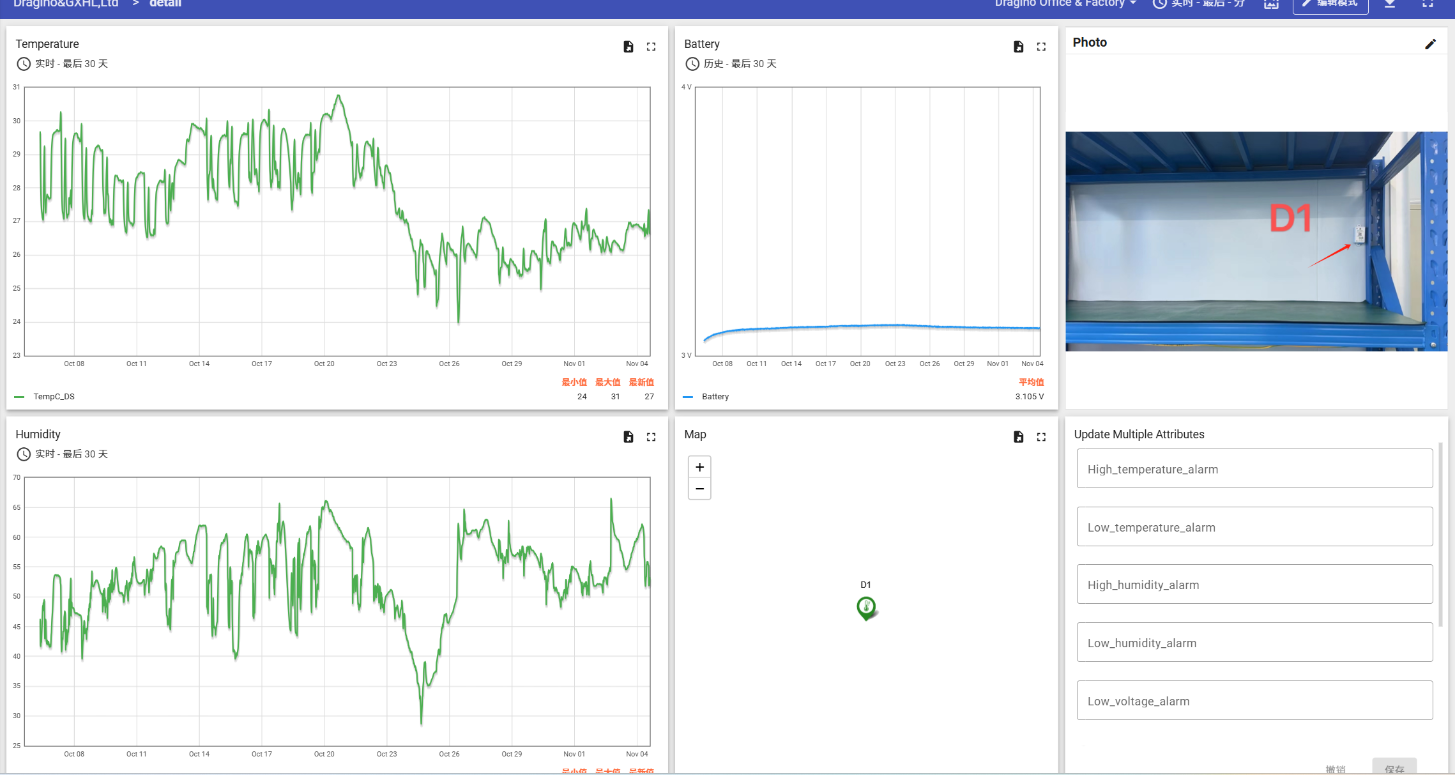

device:This section displays the specific information collected by the device, and different types of sensors have different display interfaces

屏幕截图 2024-11-04 134645.png

First floor：


Second floor：


Third floor：




  • How many types of devices do you need, how many layers of third level dashboards  you need to create.

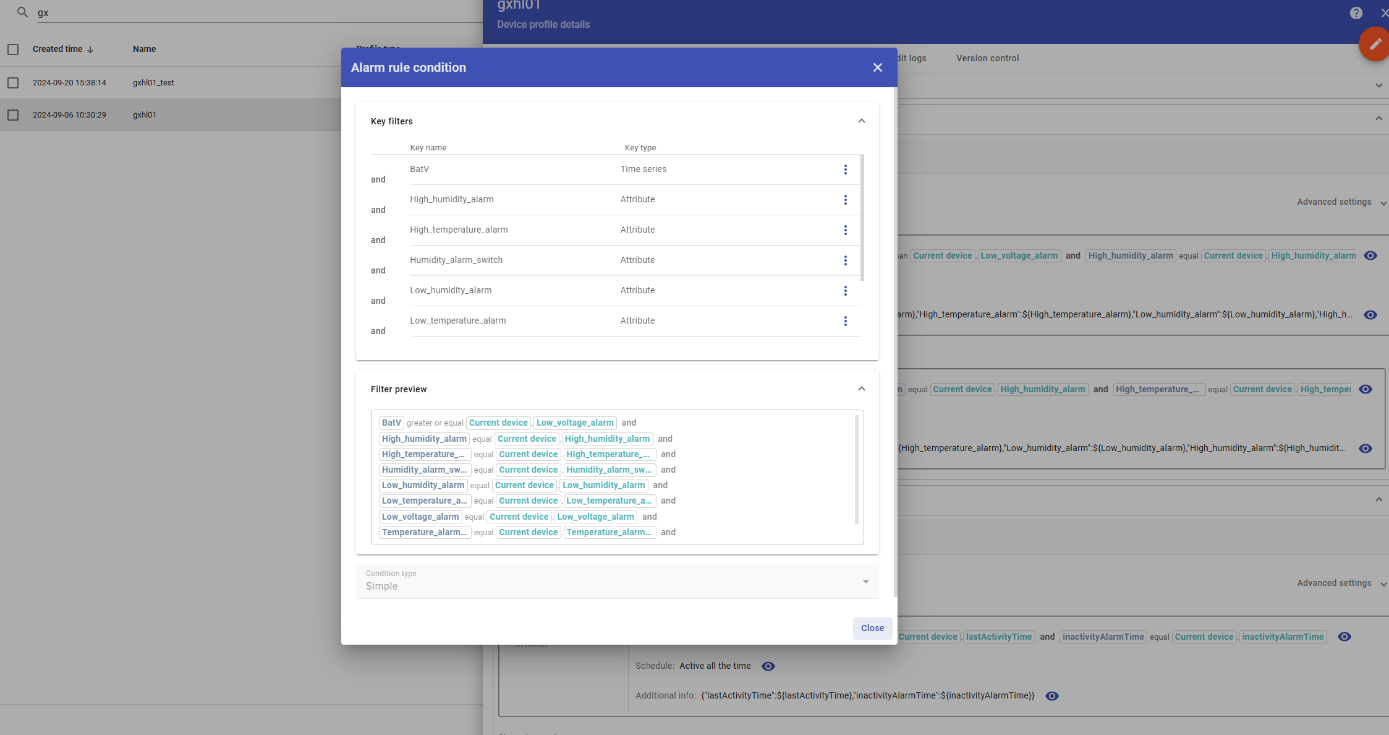

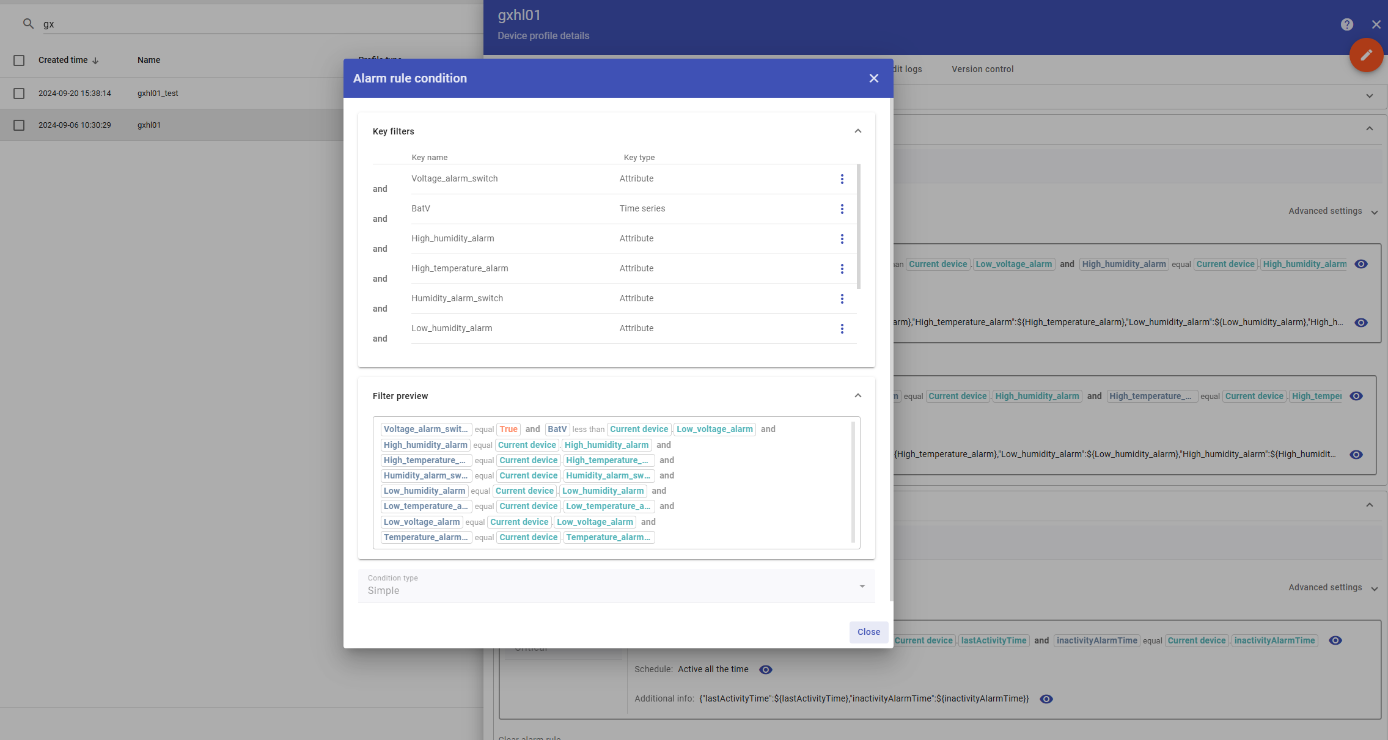

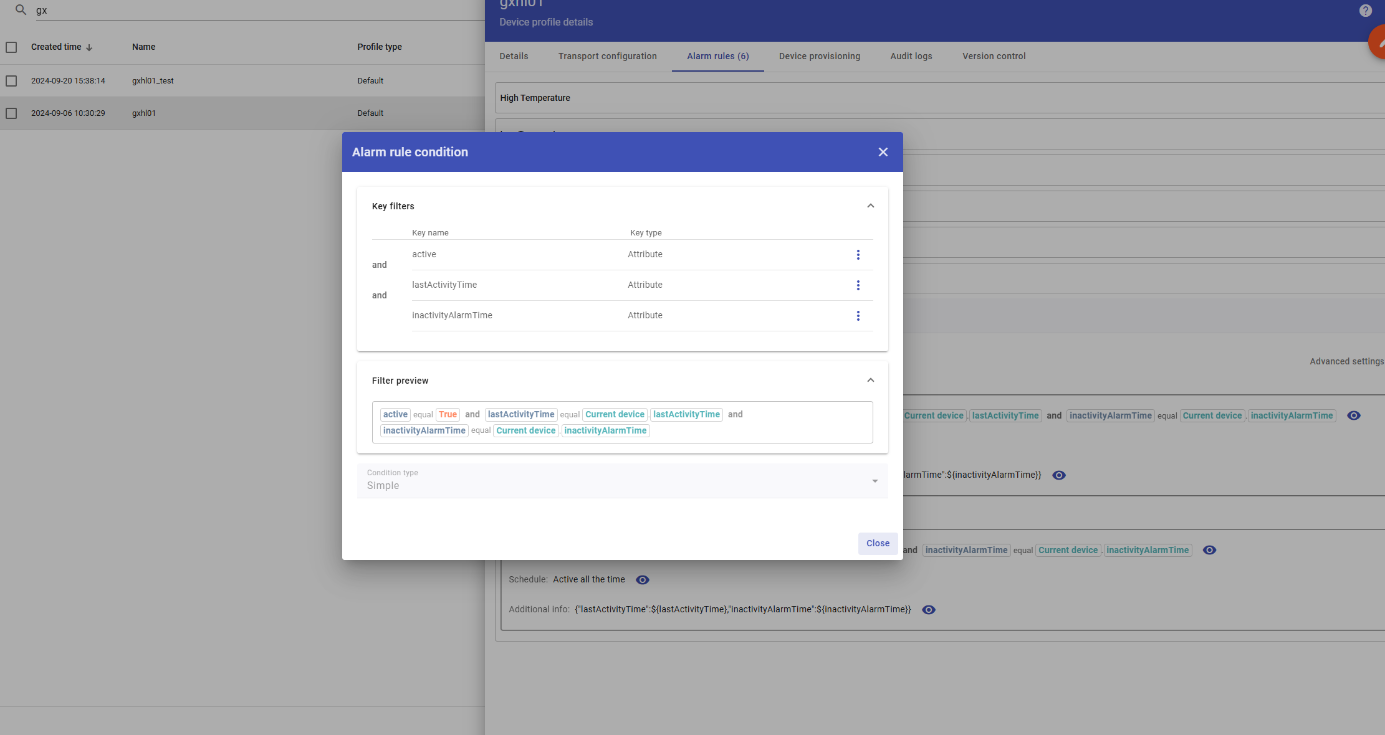

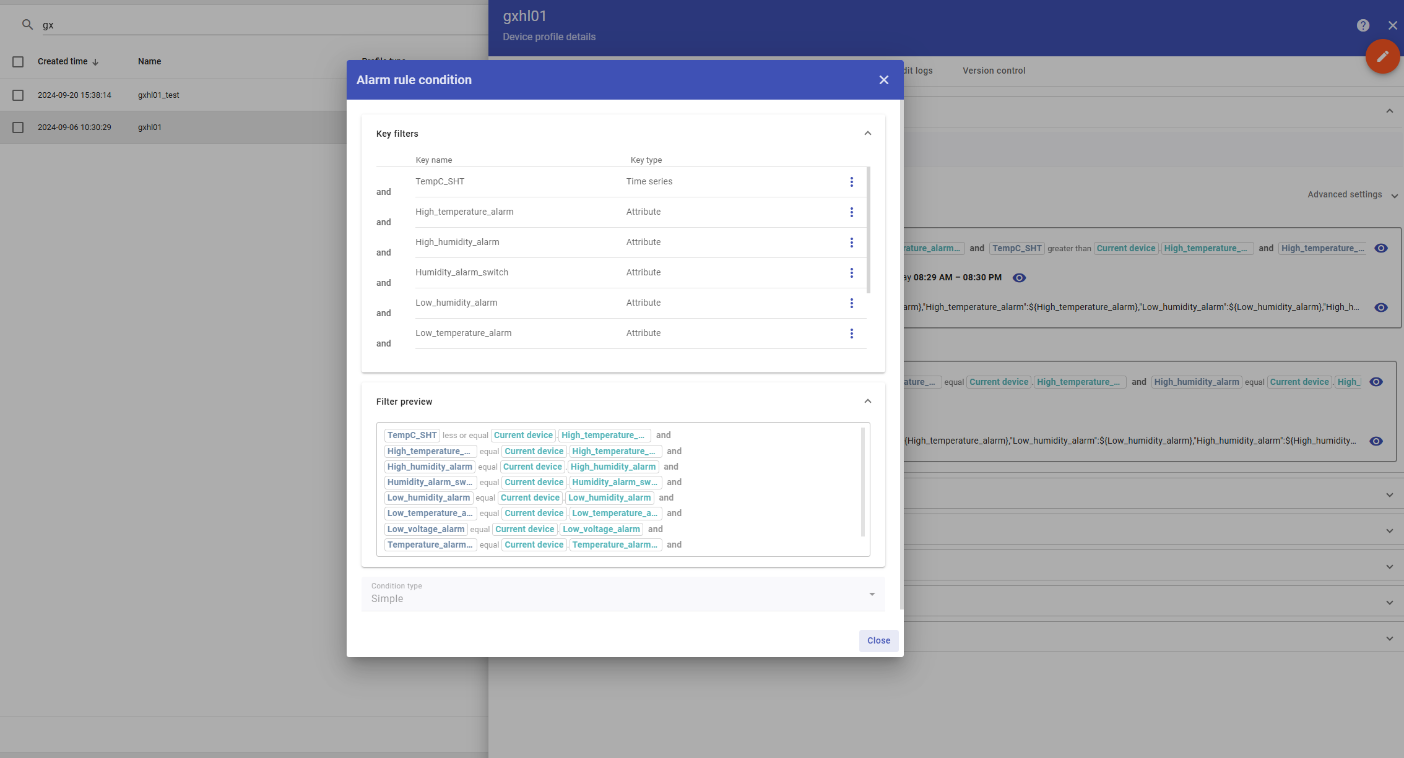

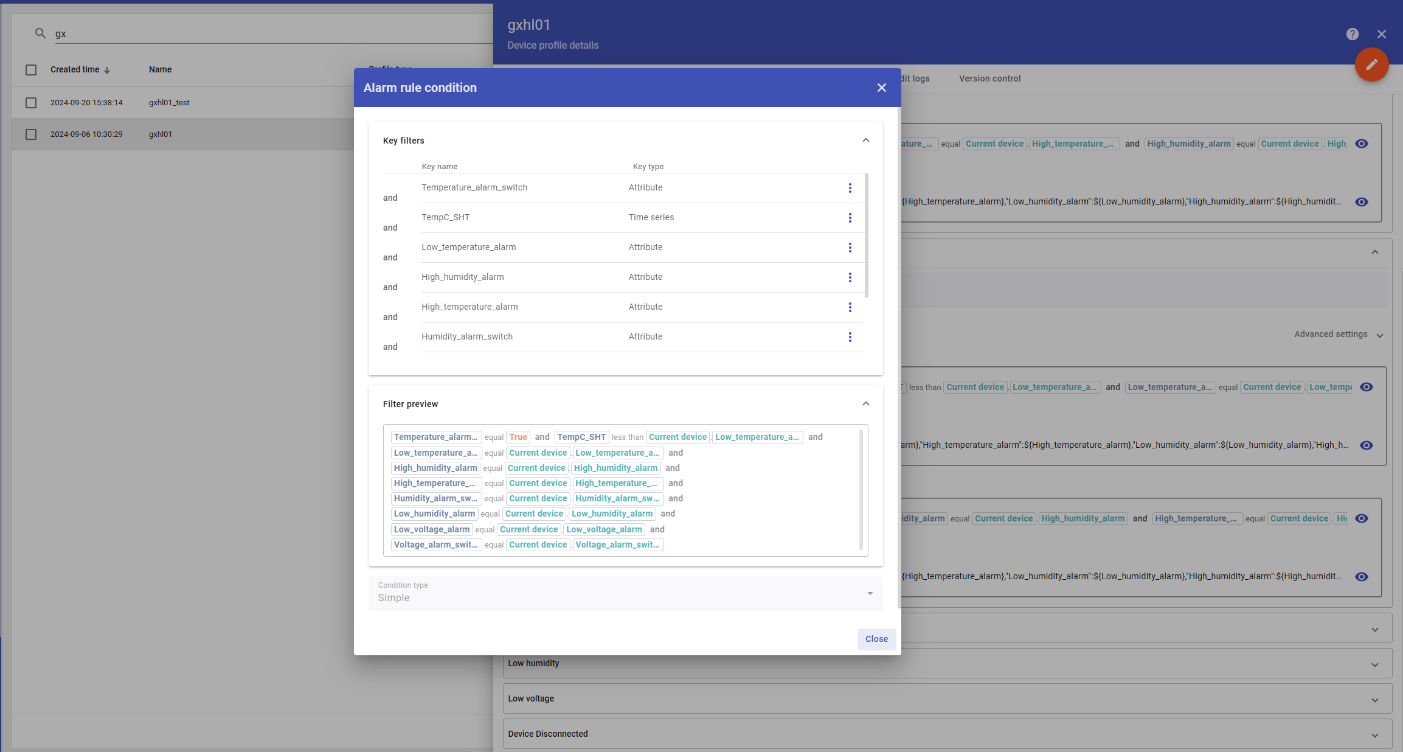

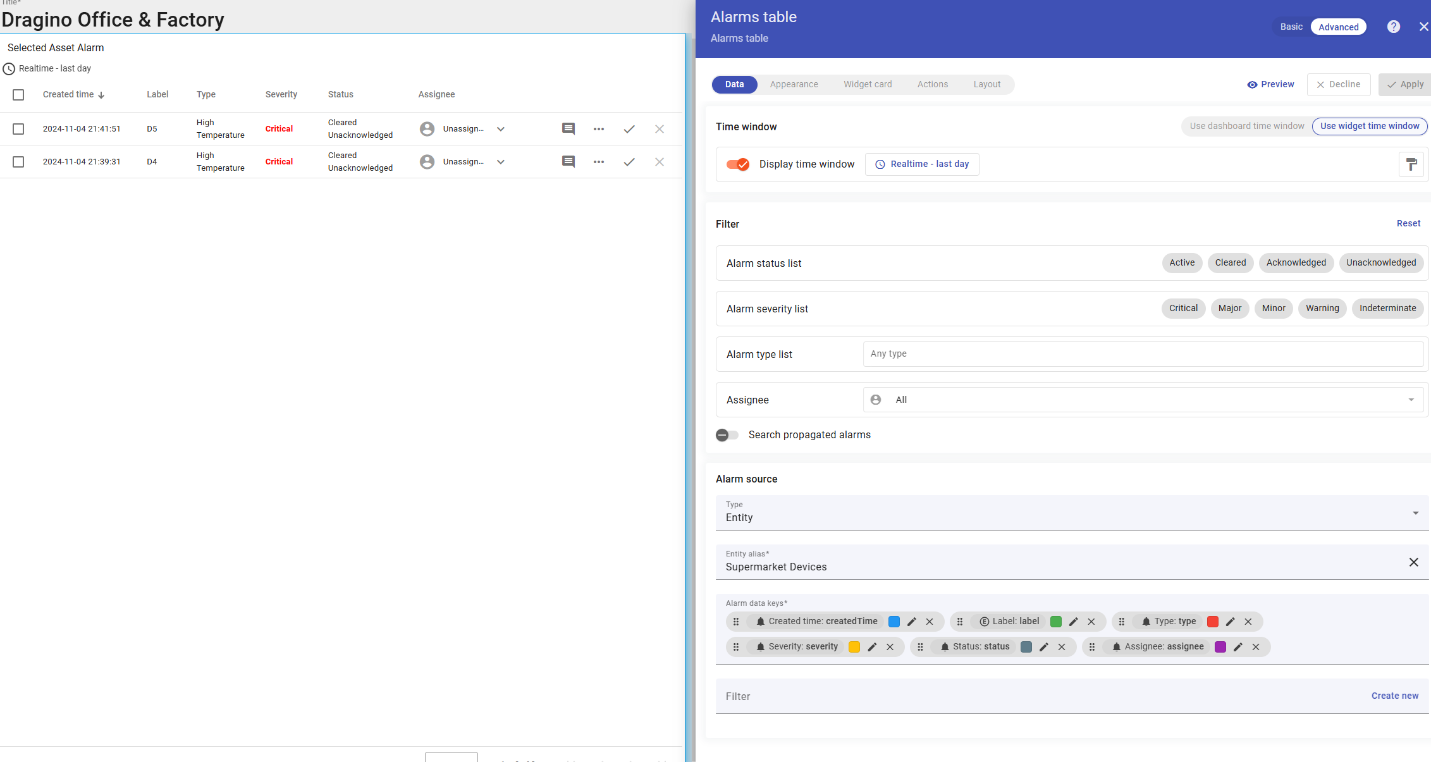

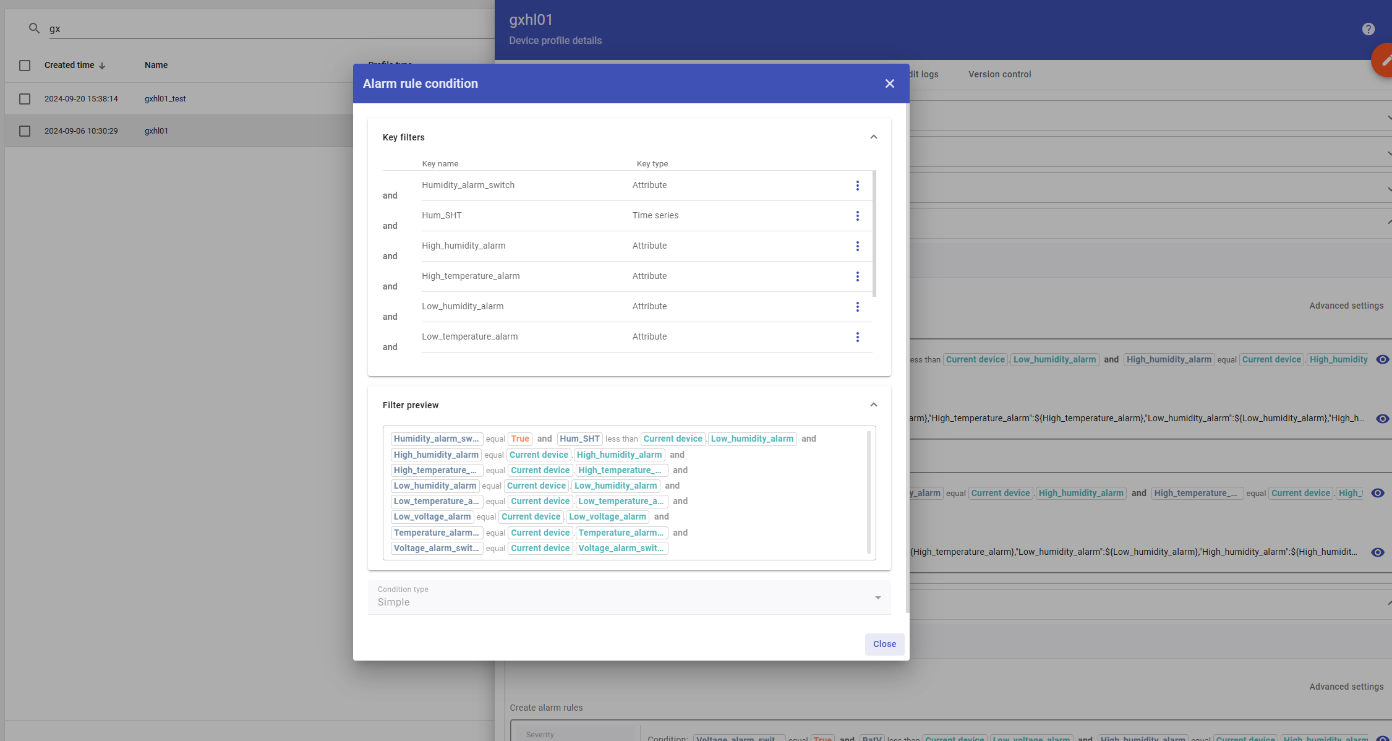

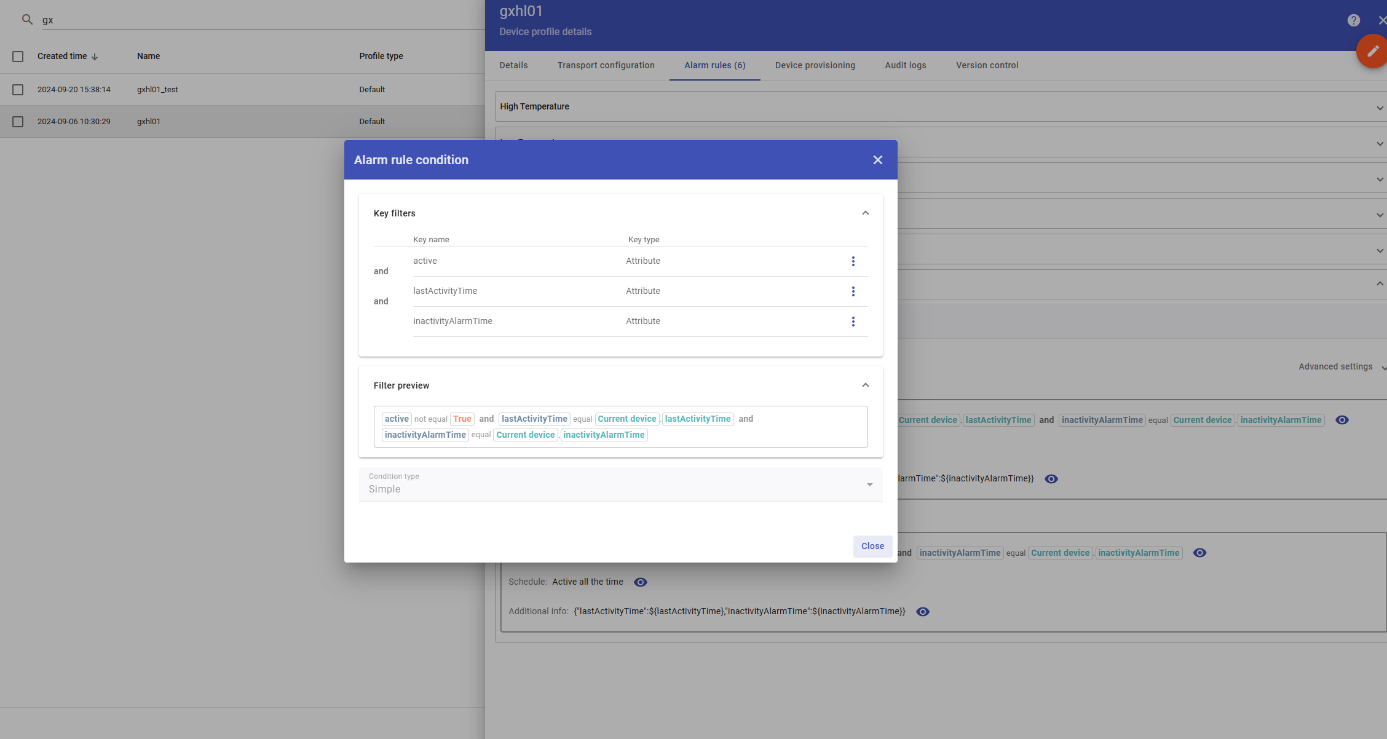

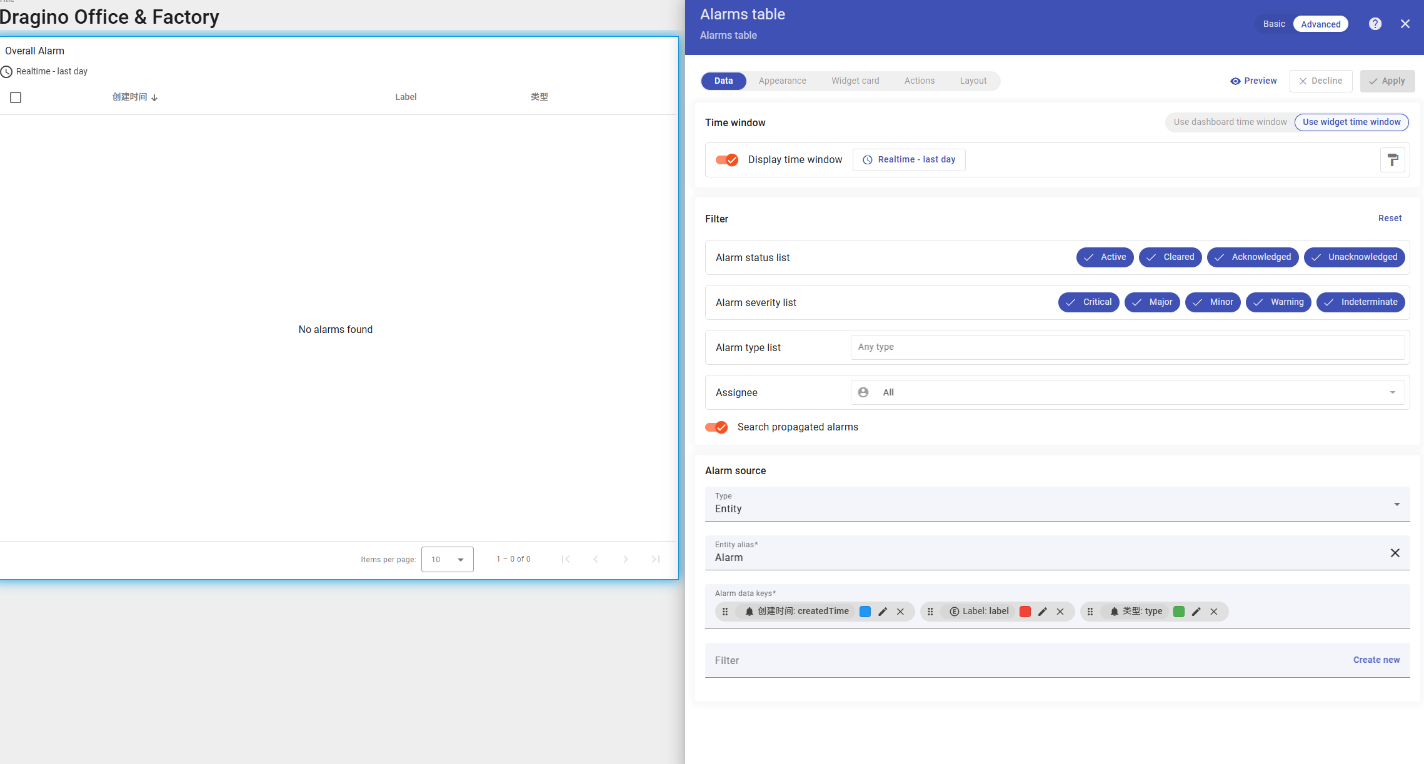

3.3 Alarm rules

High Temperature、Low Temperature、High humidity、Low humidity、Low voltage、Device Disconnected

屏幕截图 2024-11-04 135045.png

4.configuration details

After understanding the architecture and layering of the complete project, we can start configuring it

4.1 Dashboard configuration details

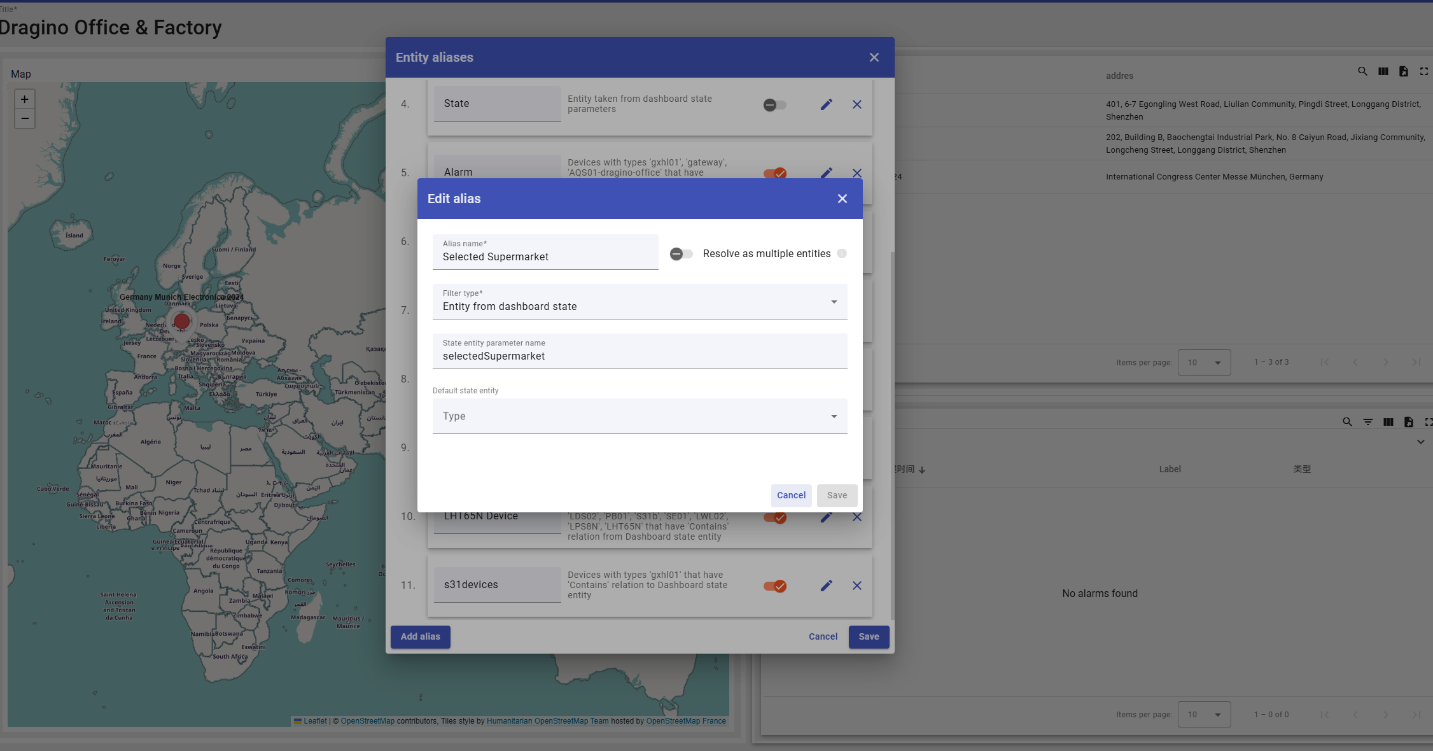

4.1.1.Data source (Entity aliases)

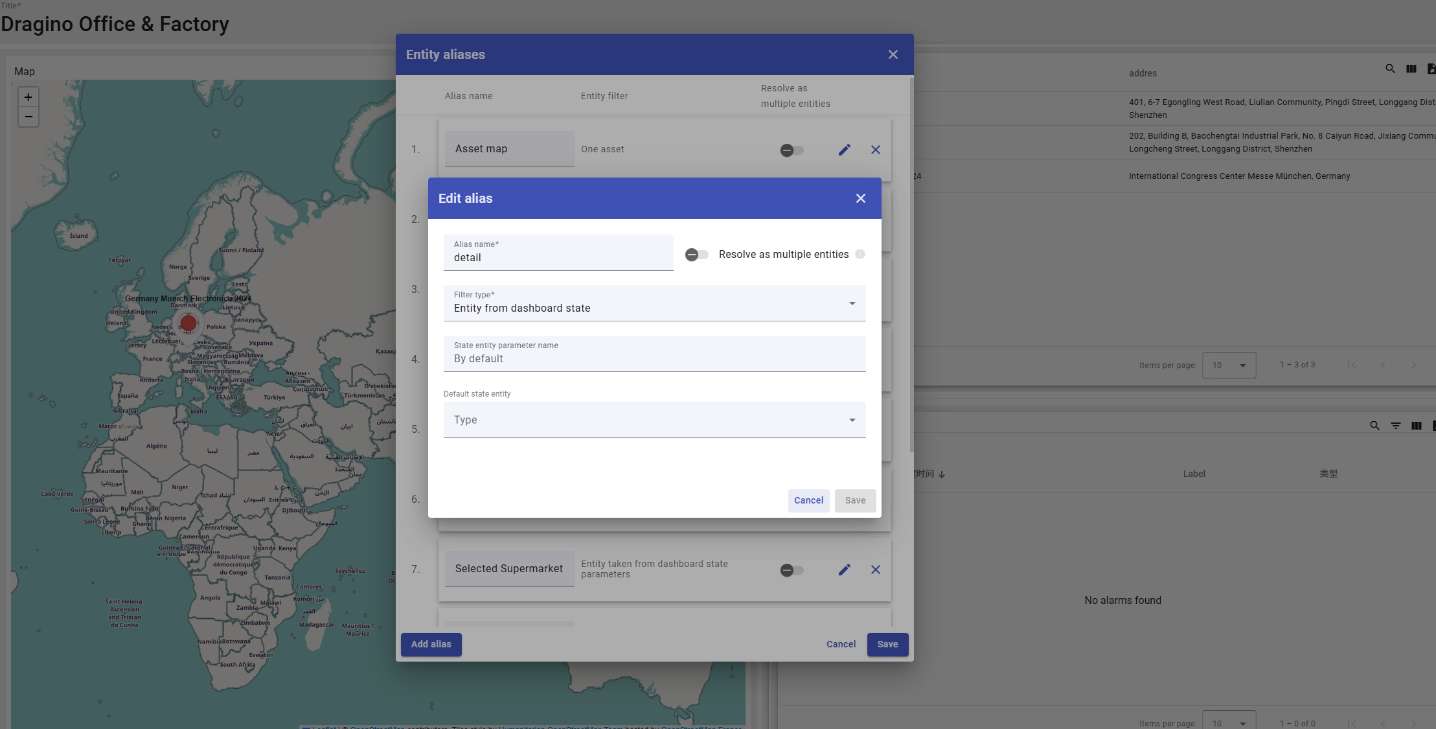

detail:Obtain data based on dashboard status

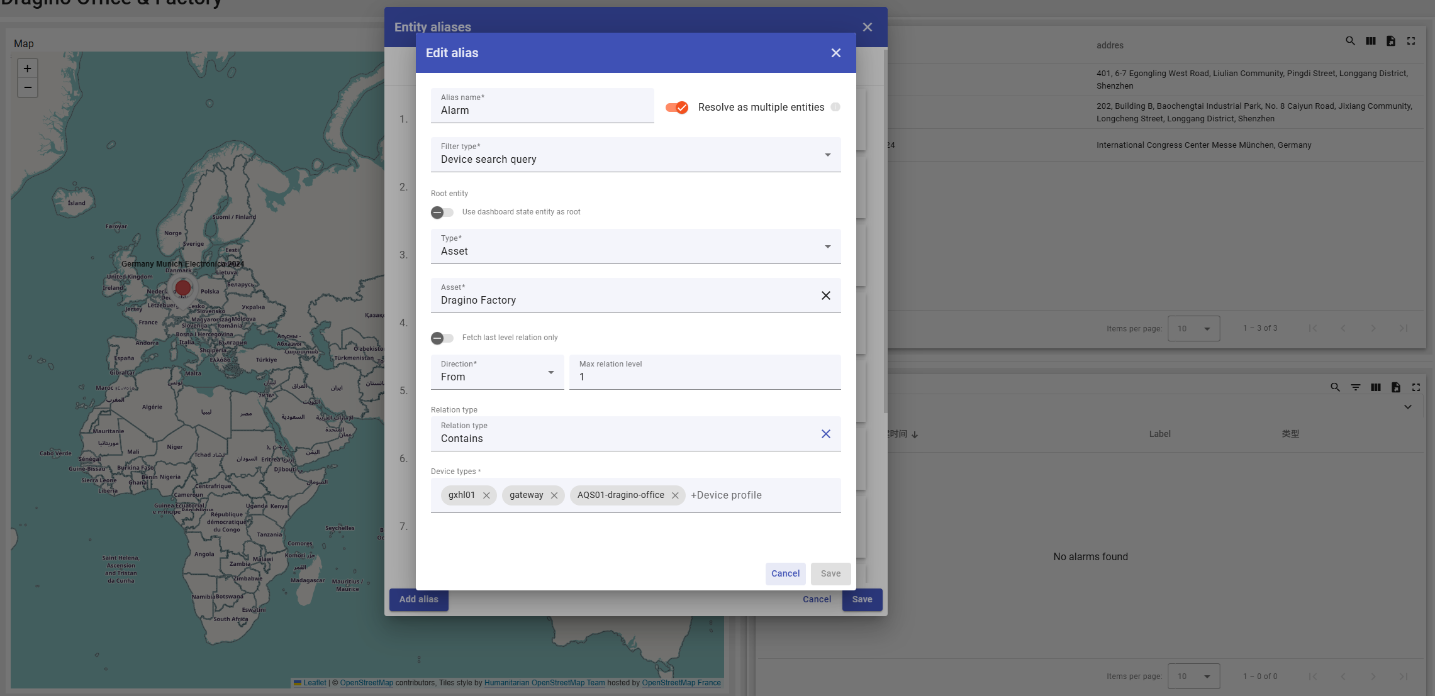

Alarm:Obtain alarm information

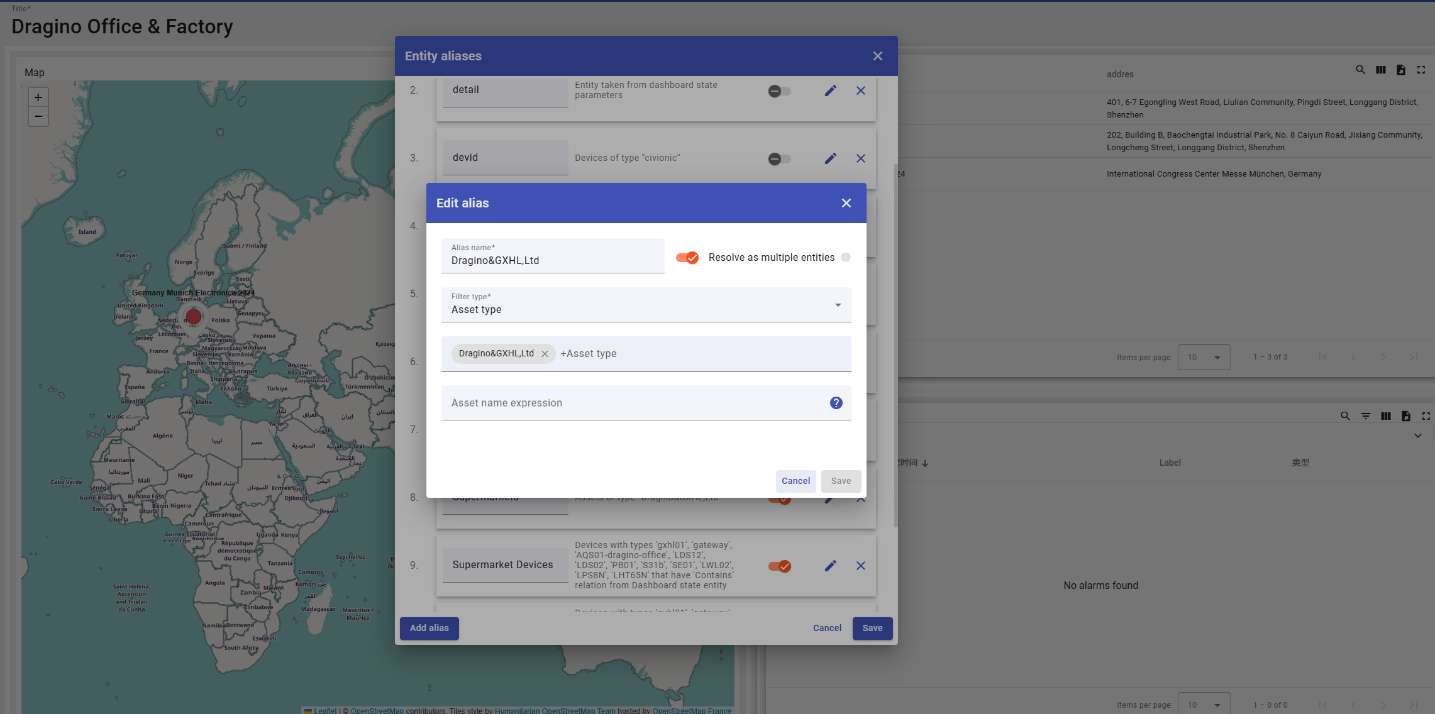

Dragino&GXHL,Ltd:Obtain data through asset types


Selected Supermarket:Retrieve devices by device type

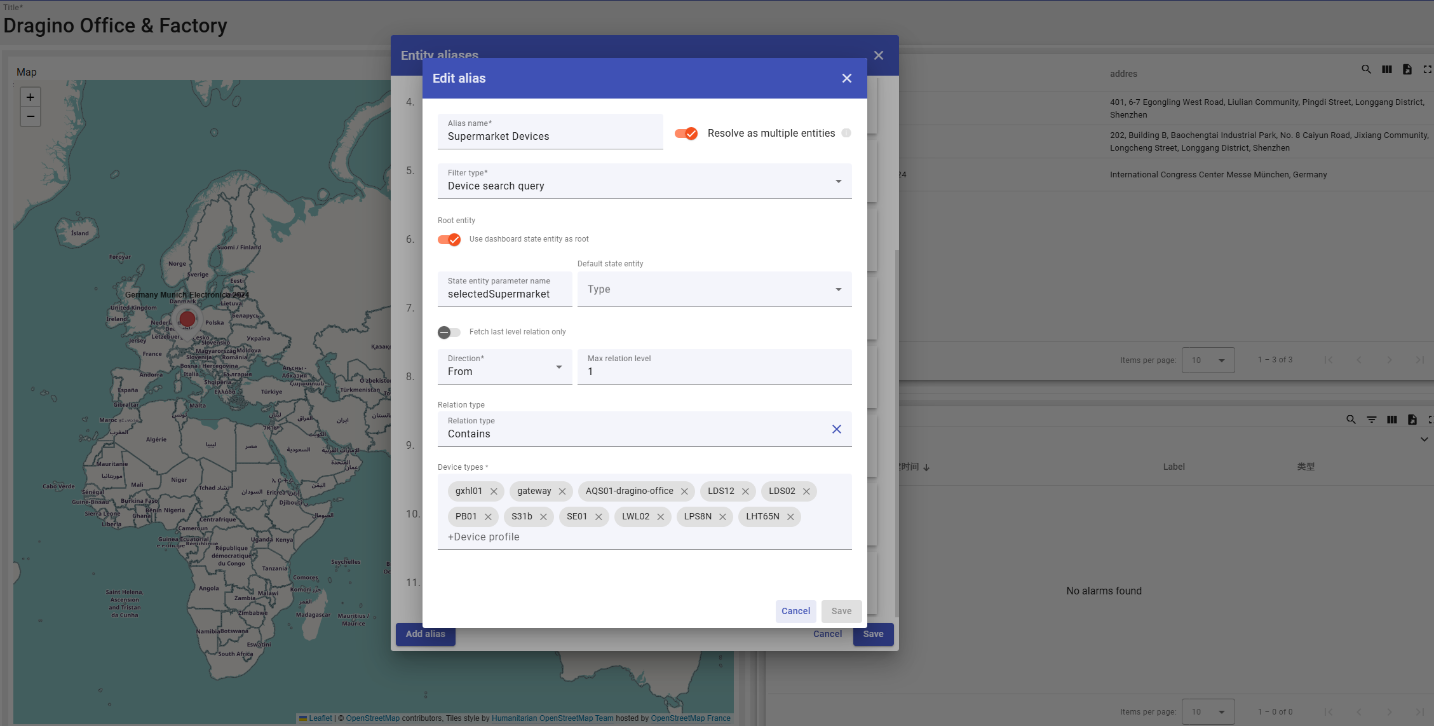

Supermarket Devices:Obtain data through device type

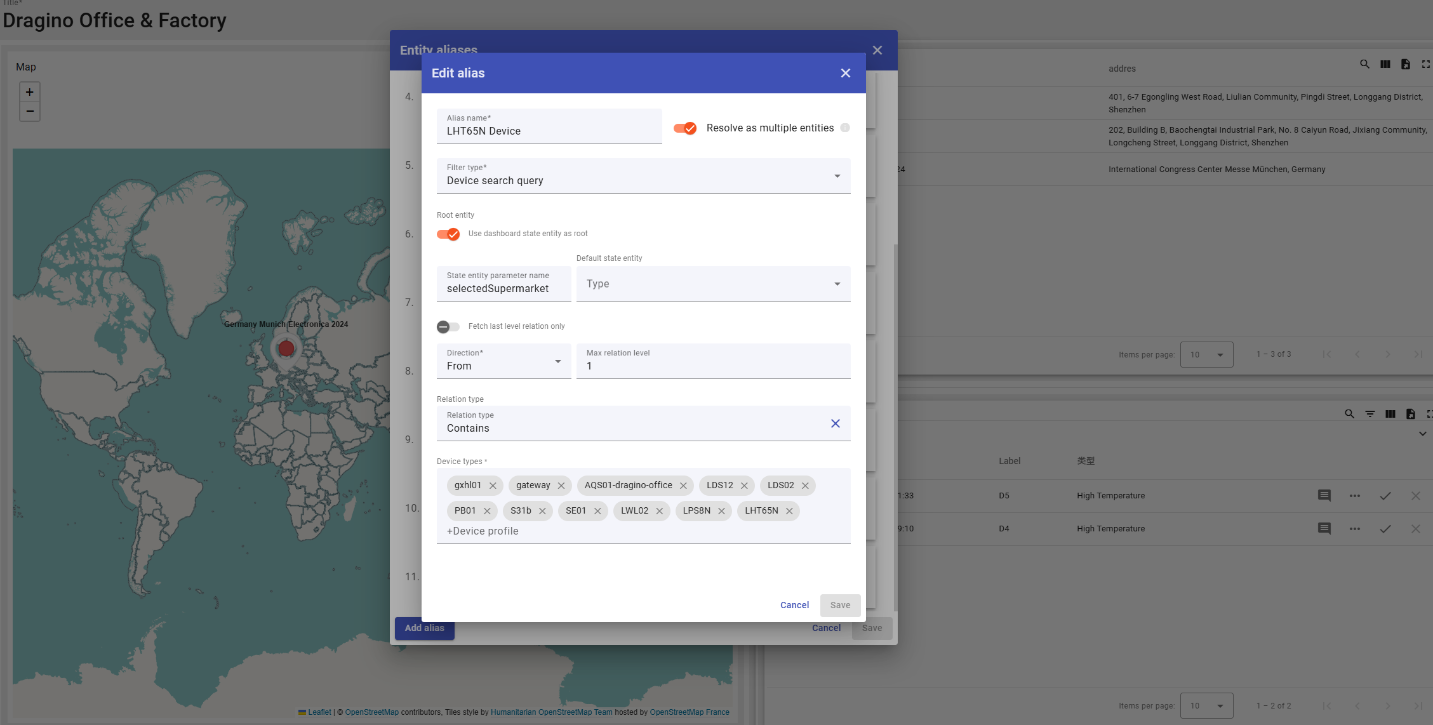

LHT65N Device：Obtain data based on device type


4.1.2.Page Configuration

4.1.2.1、Configure the interface of the third layer Davies.

This layer is the display interface of our sensors. In this interface, we need to create a dashboard based on the data we want from our sensors, or import the dashboard of the basic sensors, download the modules, and import them into the third level dashboard

Addres:https://github.com/ThingsEye-io/te-platform/tree/main/Devices/Dragino

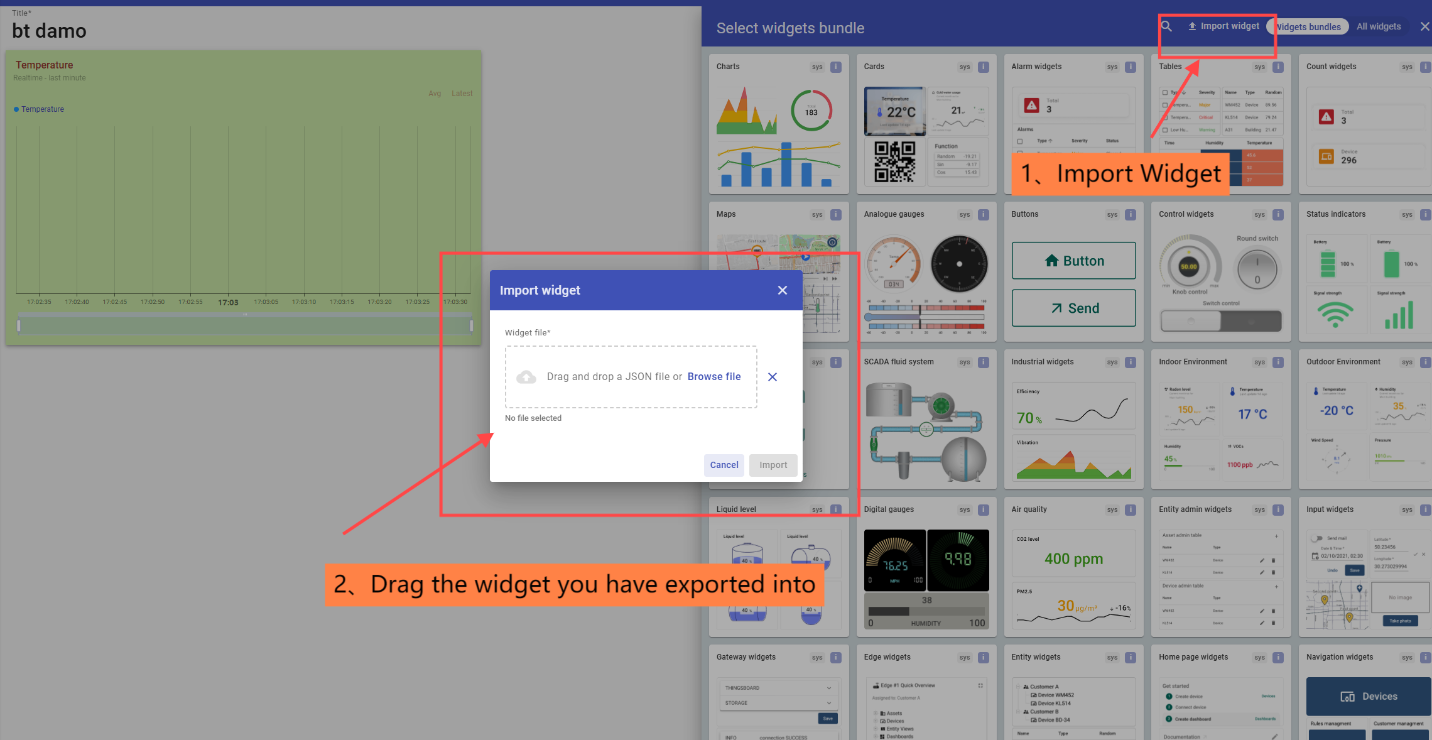

4.1.2.1.1 Import dashboard widget

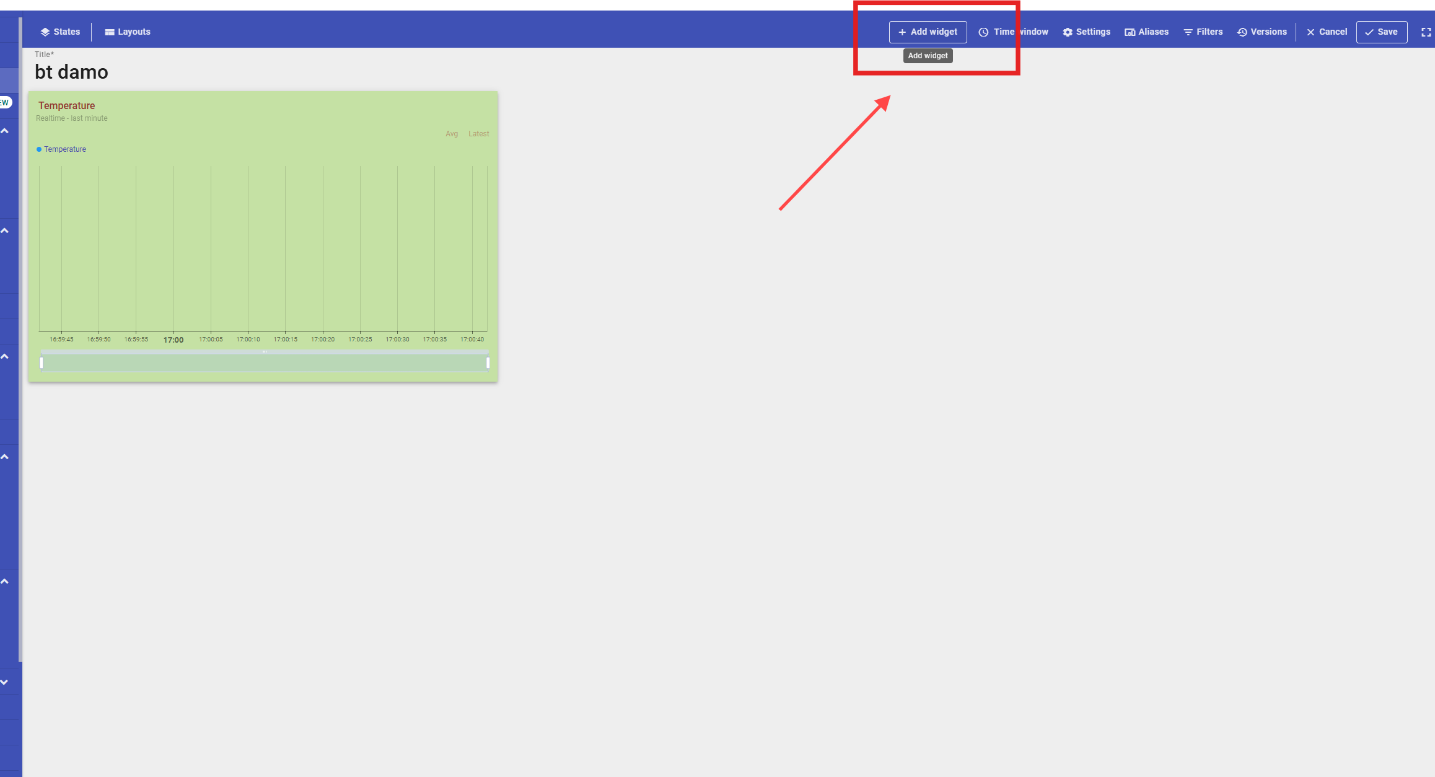

Step1.Open a blank dashboard and click on "Add widget" in the upper right corner


Step2.Import the widgets you want as shown in the following figure


4.1.2.2、Configure the interface of the second layer asset

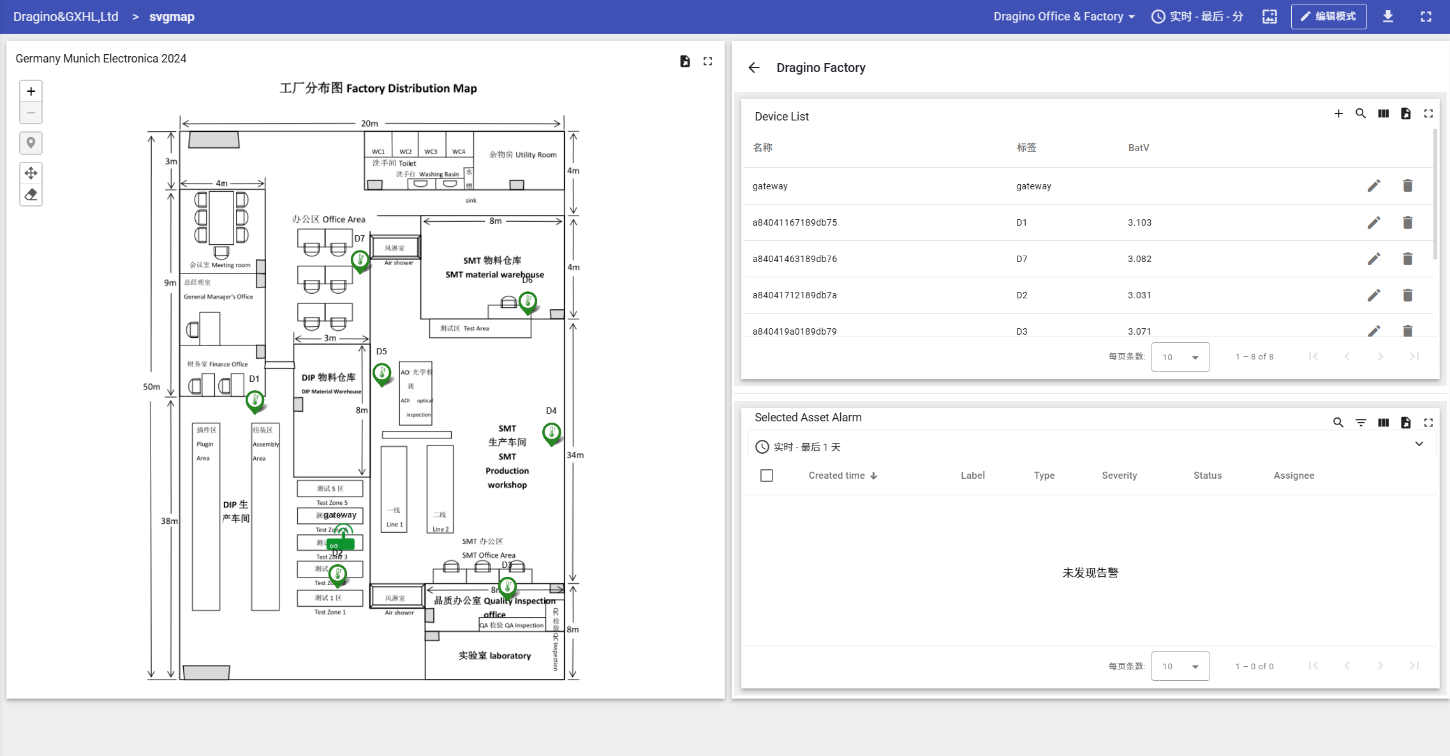

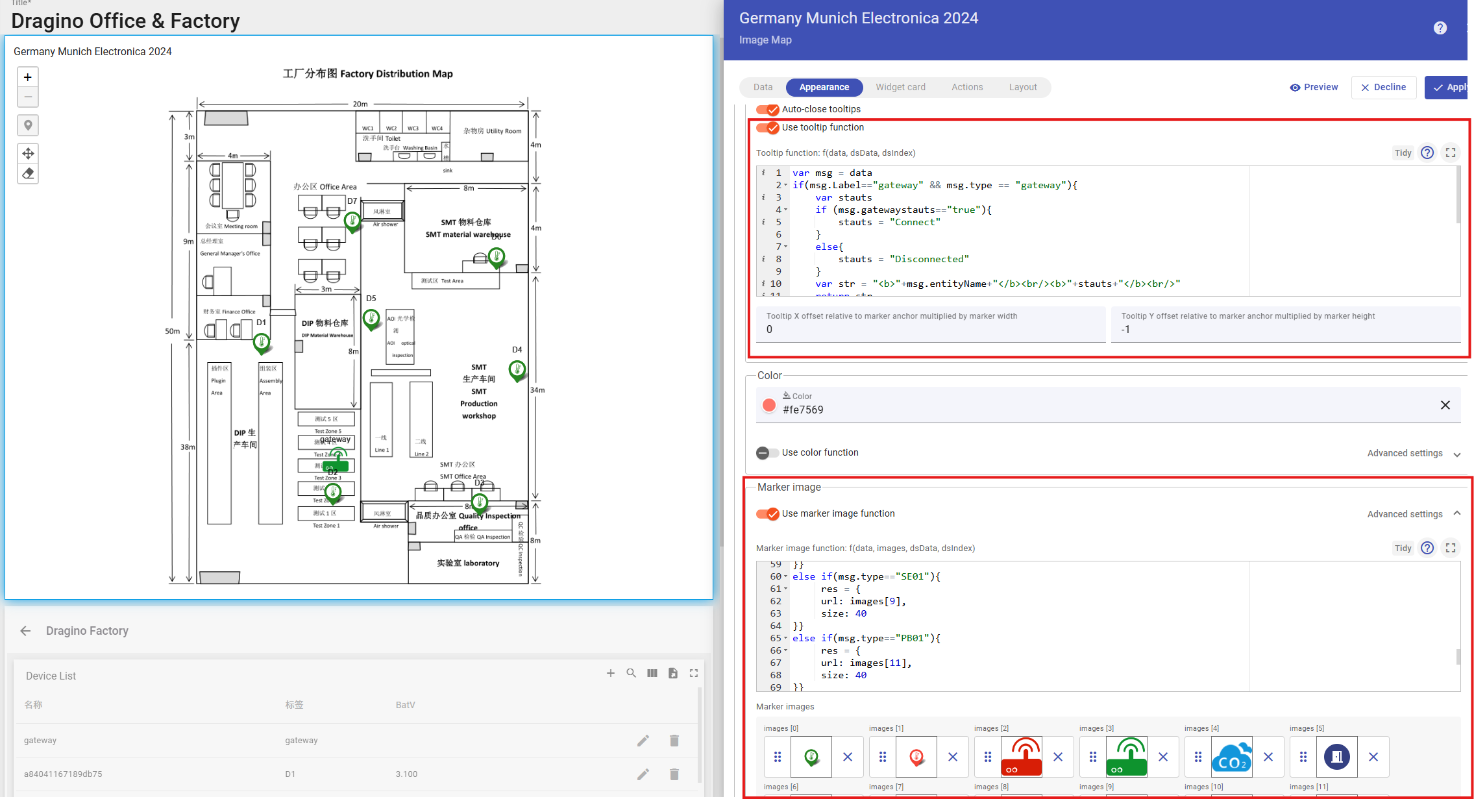

4.1.2.2.1 Equipment distribution diagram：

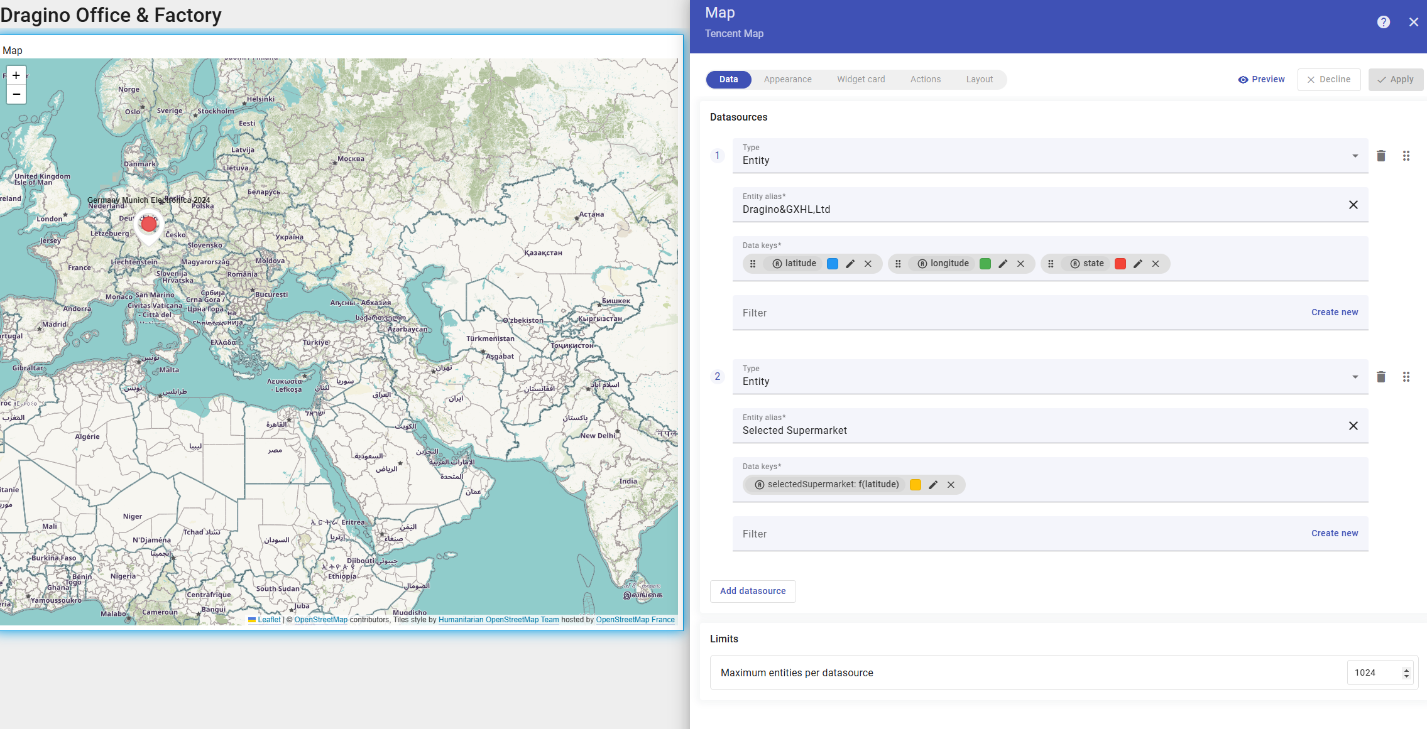

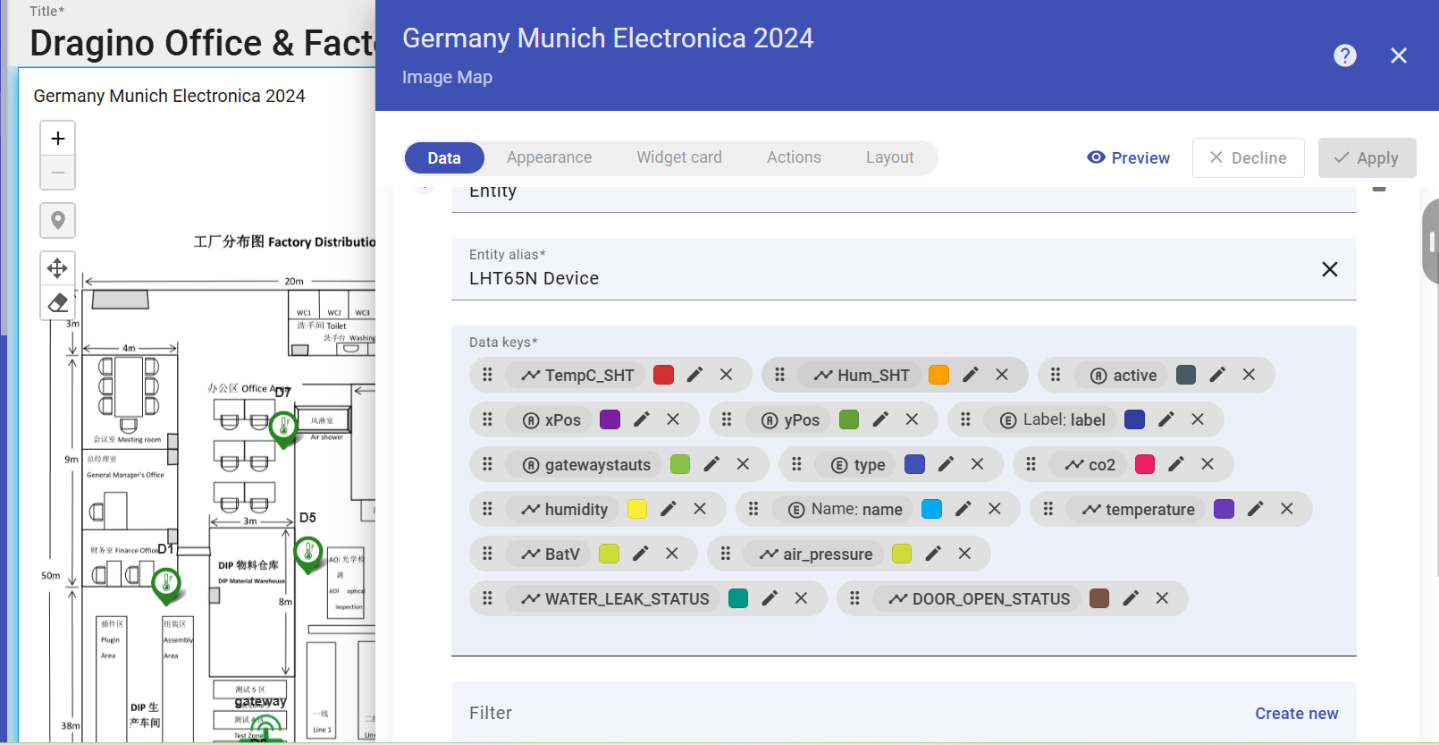

Data：

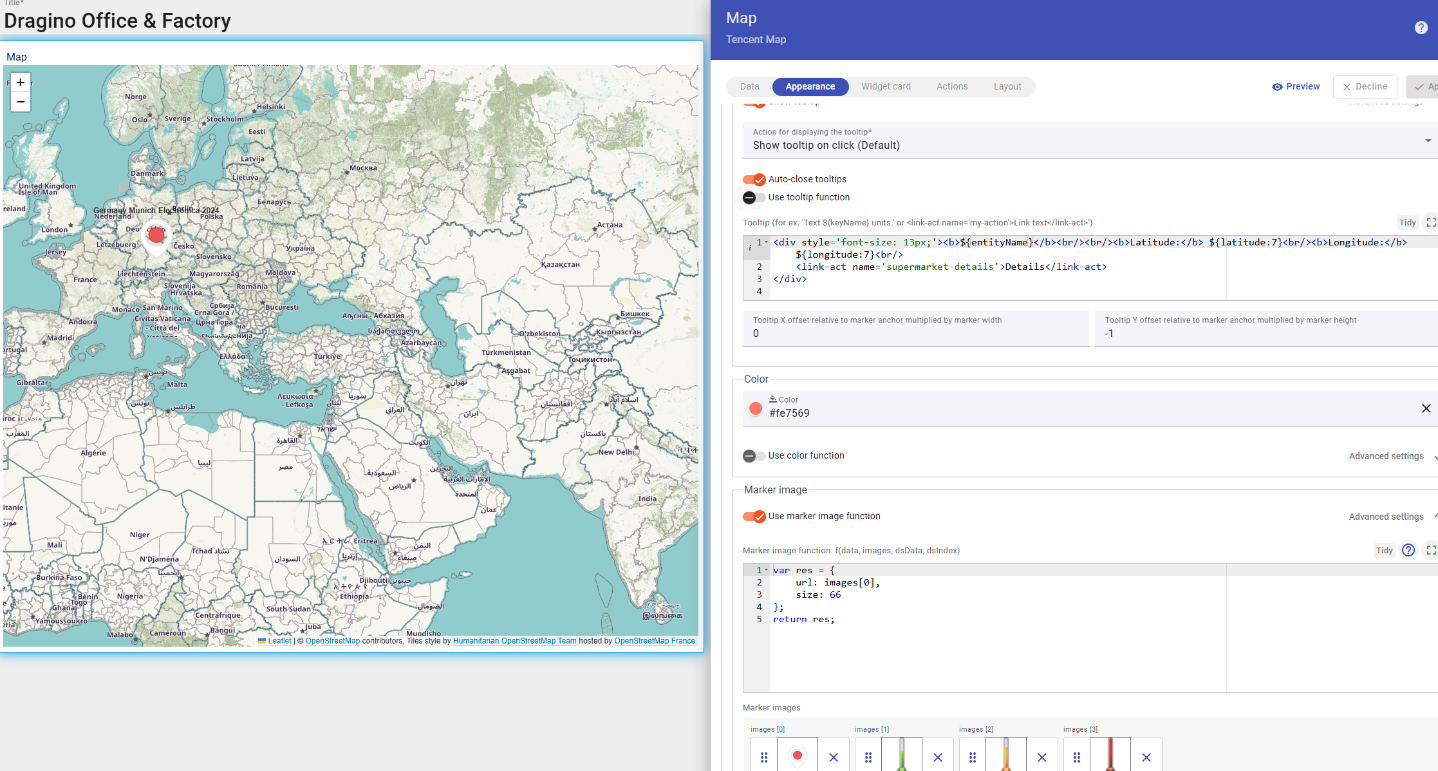

Appearannce：In this module, we need to arrange our devices in the corresponding positions and use icons to display our devices. Therefore, in the Appearance interface, we need to configure them

Tooltip function：This module displays the current information of the device


var msg = data
if(msg.Label=="gateway" && msg.type == "gateway"){
    var stauts
    if (msg.gatewaystauts=="true"){
        stauts = "Connect"
    }
    else{
        stauts = "Disconnected"
    }
    var str = "<b>"+msg.entityName+"</b><br/><b>"+stauts+"</b><br/>"
    return str
}
else if(msg.type=="gxhl01" && msg.Label!="gateway"){
    var str = "<b>"+msg.entityName+"</b><br/><b>"+msg.Label+"</b><br/><b>Bat:</b>"+msg.BatV+"V<br/><b>Temperature:</b>"+ msg.TempC_SHT+ "°C<br/><b>Humidity:</b>"+msg.Hum_SHT+"%"
    return str
}
else{
    var str = "<b>"+msg.entityName+"</b><br/><b>"+msg.Label+"</b><br/><b>Bat:</b>"+msg.BatV+"V<br/><b>Temperature:</b>"+ msg.temperature+ "°C<br/><b>Humidity:"+msg.humidity+"%"+"</b><br/>"+
                "<b>Co2:"+msg.co2+"</b></br><b>Air_Pressure:"+msg.air_pressure

    return str
}

Marker image function：This module can display different icons based on different types of sensors and their status to achieve its functionality


var res
var msg = data
if(msg.Label=="gateway" && msg.type=="gateway"){
     if (msg.gatewaystauts == "true"){
     res = {
     url: images[3],
     size: 40
}
}
else{
    res = {
     url: images[2],
     size: 40
}
}}
else if(msg.Label!="gateway" && msg.type=="gxhl01" ){
    if (msg.active=="false"){
     res = {
     url: images[1],
     size: 40
}}
else{
    res = {
     url: images[0],
     size: 40
}
}
}
else if(msg.type=="LWL02"){
    if (msg.WATER_LEAK_STATUS=="0"){
     res = {
     url: images[6],
     size: 40
}}
else{
    res = {
     url: images[7],
     size: 40
}
}
}
else if(msg.type=="LDS02"){
    if (msg.DOOR_OPEN_STATUS=="0"){
     res = {
     url: images[5],
     size: 40
}}
else{
    res = {
     url: images[8],
     size: 40
}
}
}
else if(msg.type=="LDS12"){
     res = {
     url: images[10],
     size: 40
}}
else if(msg.type=="SE01"){
     res = {
     url: images[9],
     size: 40
}}
else if(msg.type=="PB01"){
     res = {
     url: images[11],
     size: 40
}}
else if(msg.type=="S31b"){
     res = {
     url: images[12],
     size: 40
}}
else if(msg.type=="LHT65N"){
     res = {
     url: images[13],
     size: 40
}}
else{
       res = {
     url: images[4],
     size: 40
}
}
return res;

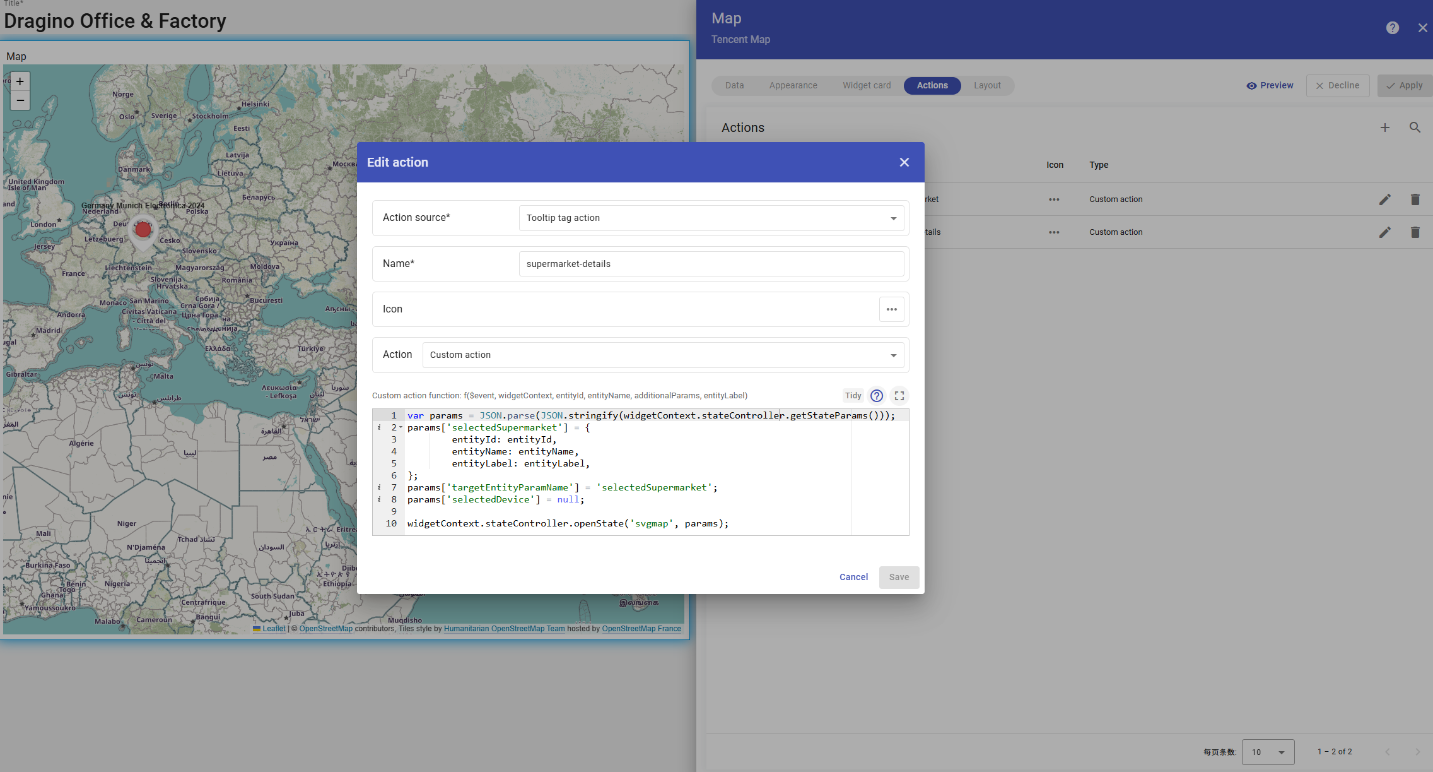

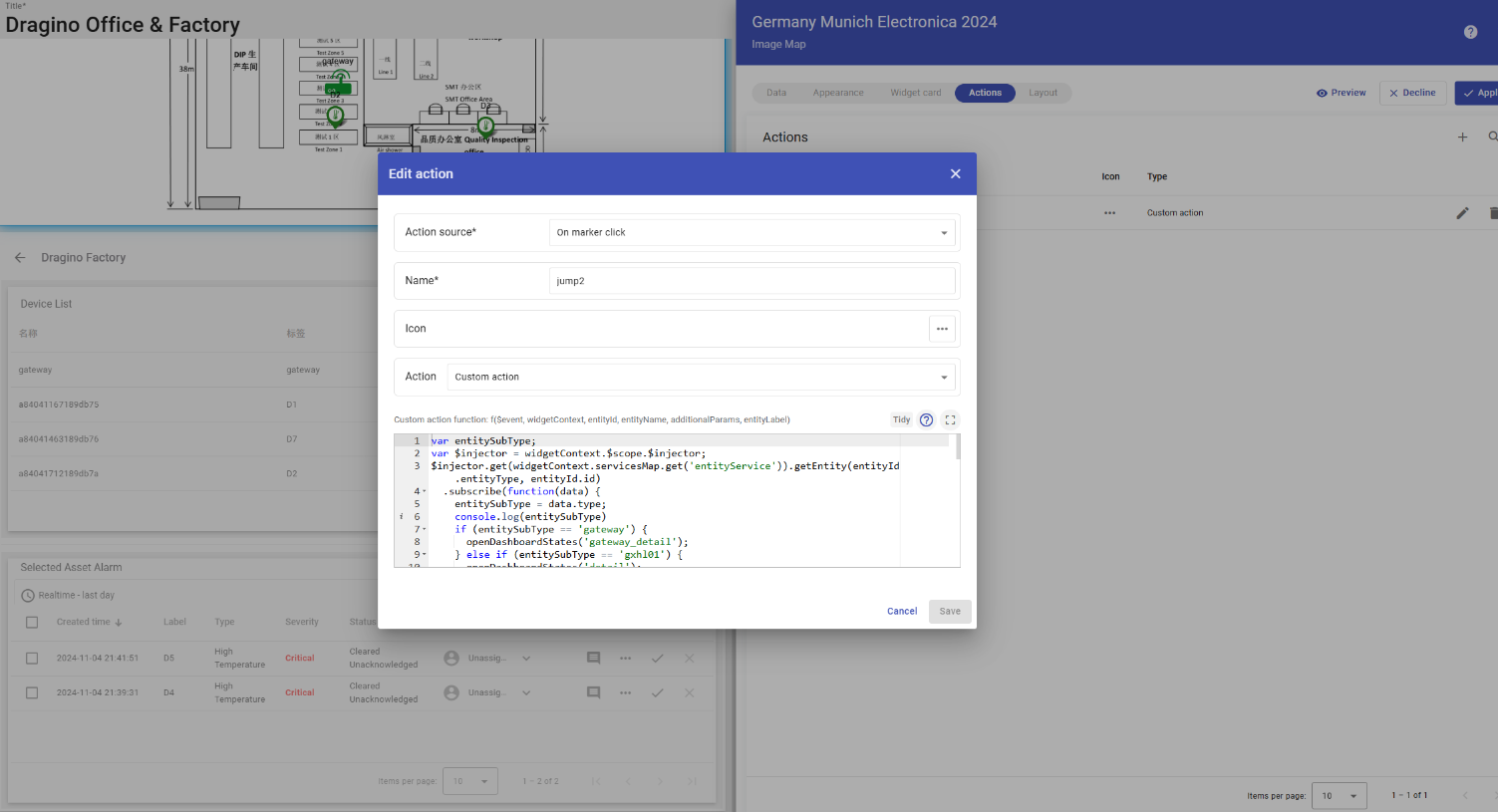

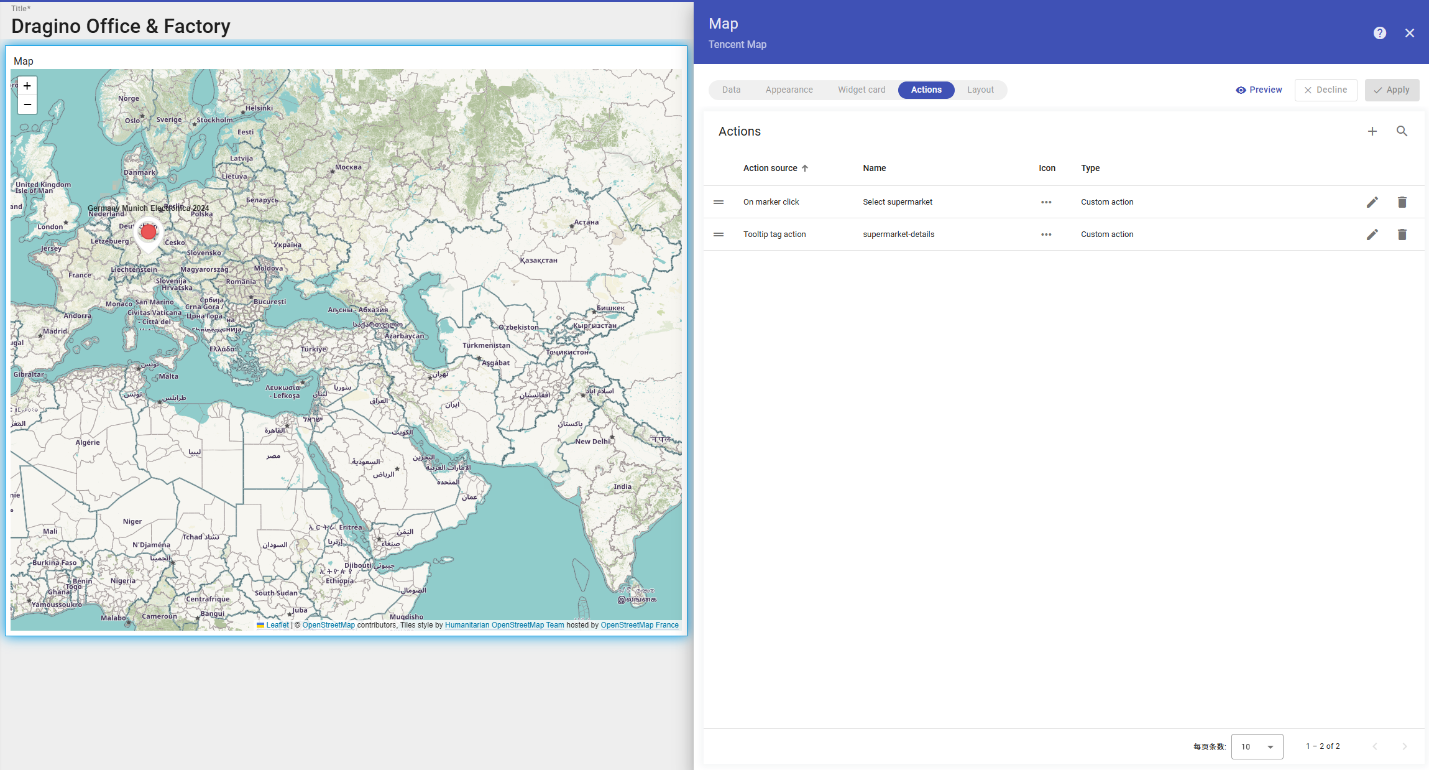

Actions:We need to implement the function of entering the details interface through the corresponding device icon, so in this module, we need to add actions to achieve redirection

var entitySubType;
var $injector = widgetContext.$scope.$injector;
$injector.get(widgetContext.servicesMap.get('entityService')).getEntity(entityId.entityType, entityId.id)
  .subscribe(function(data) {
    entitySubType = data.type;
    console.log(entitySubType)
    if (entitySubType == 'gateway') {
      openDashboardStates('gateway_detail');
    } else if (entitySubType == 'gxhl01') {
      openDashboardStates('detail');
    }
    else if(entitySubType == 'AQS01-dragino-office'){
        openDashboardStates("aqs01_detail")
    }
    else if (entitySubType == 'LDS12') {
      openDashboardStates('lds12_detail');
    }
    else if (entitySubType == 'LDS02') {
      openDashboardStates('lds02_detail');
    }
    else if (entitySubType == 'SE01') {
      openDashboardStates('se01_detail');
    }
    else if (entitySubType == 'PB01') {
      openDashboardStates('pb01_detail');
    }
    else if (entitySubType == 'LWL02') {
      openDashboardStates('lwl02_detail');
    }
    else if (entitySubType == 'LPS8N') {
      openDashboardStates('lps8n_detail');
    }
    else if (entitySubType == 'LHT65N') {
      openDashboardStates('lht65n_detail');
    }
    else if (entitySubType == 'S31b') {
      openDashboardStates('s31b_detail');
    }
  });

function openDashboardStates(statedId) {
  var stateParams = widgetContext.stateController.getStateParams();
  var params = {
    entityId: entityId,
    entityName: entityName
  };

  if (stateParams.city) {
    params.city = stateParams.city;
  }

  widgetContext.stateController.openState(statedId, params, false);
}

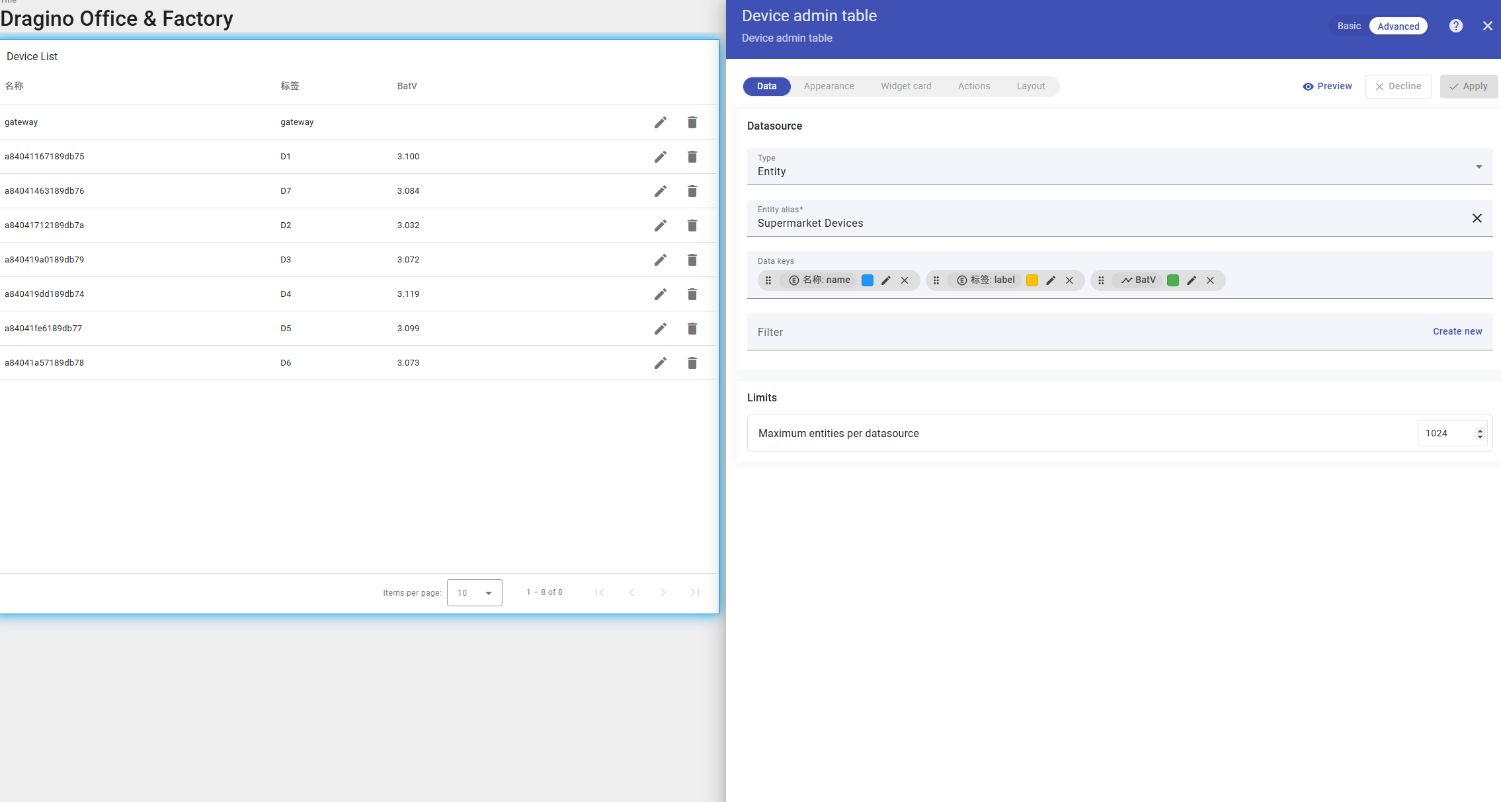

4.1.2.2.2 Device List

Data：

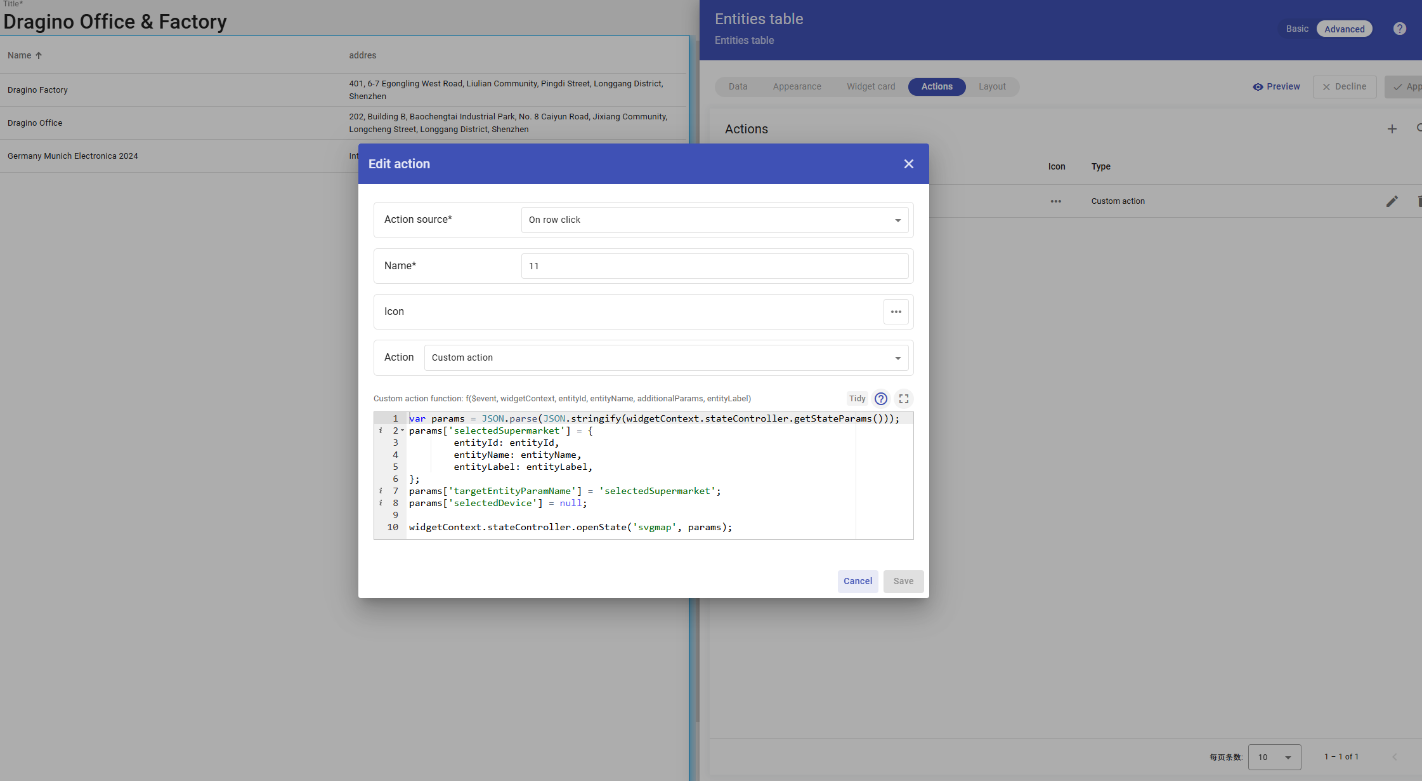

Actions：Equipment distribution diagram: In this module, functions need to be implemented such as adding devices, editing devices, deleting devices, and jumping to the device details page. Therefore, the following actions need to be added:


Edit device：Implementation function: Device editing


let $injector = widgetContext.$scope.$injector;
let customDialog = $injector.get(widgetContext.servicesMap.get('customDialog'));
let deviceService = $injector.get(widgetContext.servicesMap.get('deviceService'));
let attributeService = $injector.get(widgetContext.servicesMap.get('attributeService'));

openEditDeviceDialog();

function openEditDeviceDialog() {
    customDialog.customDialog(htmlTemplate, EditDeviceDialogController).subscribe();
}

function EditDeviceDialogController(instance) {
    let vm = instance;

    vm.device = null;
    vm.attributes = {};

    vm.editDeviceFormGroup = vm.fb.group({
      deviceName: ['', [vm.validators.required]],
      deviceType: ['', [vm.validators.required]],
      deviceLabel: [''],
      attributes: vm.fb.group({
          latitude: [null],
          longitude: [null]
      })
    });

    vm.cancel = function() {
        vm.dialogRef.close(null);
    };

    vm.save = function() {
        vm.editDeviceFormGroup.markAsPristine();
        if (vm.editDeviceFormGroup.get('deviceType').value !== vm.device.type) {
            delete vm.device.deviceProfileId;
        }
        vm.device.name = vm.editDeviceFormGroup.get('deviceName').value,
        vm.device.type = vm.editDeviceFormGroup.get('deviceType').value,
        vm.device.label = vm.editDeviceFormGroup.get('deviceLabel').value
        deviceService.saveDevice(vm.device).subscribe(
            function () {
                saveAttributes().subscribe(
                    function () {
                        widgetContext.updateAliases();
                        vm.dialogRef.close(null);
                    }
                );
            }
        );
    };

    getEntityInfo();

    function getEntityInfo() {
        deviceService.getDevice(entityId.id).subscribe(
            function (device) {
                attributeService.getEntityAttributes(entityId, 'SERVER_SCOPE',
                                                    ['latitude', 'longitude']).subscribe(
                   function (attributes) {
                        for (let i = 0; i < attributes.length; i++) {
                            vm.attributes[attributes[i].key] = attributes[i].value;
                        }
                        vm.device = device;
                        vm.editDeviceFormGroup.patchValue(
                            {
                                deviceName: vm.device.name,
                                deviceType: vm.device.type,
                                deviceLabel: vm.device.label,
                                attributes: {
                                    latitude: vm.attributes.latitude,
                                    longitude: vm.attributes.longitude
                                }
                            }, {emitEvent: false}
                        );
                   }
                );
            }
        );
    }

    function saveAttributes() {
        let attributes = vm.editDeviceFormGroup.get('attributes').value;
        let attributesArray = [];
        for (let key in attributes) {
            attributesArray.push({key: key, value: attributes[key]});
        }
        if (attributesArray.length > 0) {
            return attributeService.saveEntityAttributes(entityId, 'SERVER_SCOPE', attributesArray);
        } else {
            return widgetContext.rxjs.of([]);
        }
    }
}

Delete device：Implementation function: Device deletion


let $injector = widgetContext.$scope.$injector;
let dialogs = $injector.get(widgetContext.servicesMap.get('dialogs'));
let deviceService = $injector.get(widgetContext.servicesMap.get('deviceService'));

openDeleteDeviceDialog();

function openDeleteDeviceDialog() {
    let title = "Are you sure you want to delete the device " + entityName +  "?";
    let content = "Be careful, after the confirmation, the device and all related data will become unrecoverable!";
    dialogs.confirm(title, content, 'Cancel', 'Delete').subscribe(
        function (result) {
            if (result) {
                deleteDevice();
            }
        }
    );
}

function deleteDevice() {
    deviceService.deleteDevice(entityId.id).subscribe(
        function () {
            widgetContext.updateAliases();
        }
    );
}

jump:Implementation function: Jump to the device details page


console.log(entityName)
var entitySubType;
var $injector = widgetContext.$scope.$injector;
//console.log($injector)
$injector.get(widgetContext.servicesMap.get('entityService')).getEntity(entityId.entityType, entityId.id)
  .subscribe(function(data) {
      console.log(data)
    entitySubType = data.type;
    console.log(entitySubType)
    if (entitySubType == 'AQS01-dragino-office') {
      openDashboardStates('aqs01_detail');
    }else if (entitySubType == 'gateway') {
      openDashboardStates('gateway_detail');
    } else if (entitySubType == 'gxhl01') {
      openDashboardStates('detail');

    } else if (entitySubType == 'tank-type1') {
      openDashboardStates('test1');
    }
    else if (entitySubType == 'LDS12') {
      openDashboardStates('lds12_detail');
    }
    else if (entitySubType == 'LDS02') {
      openDashboardStates('lds02_detail');
    }
    else if (entitySubType == 'SE01') {
      openDashboardStates('se01_detail');
    }
    else if (entitySubType == 'PB01') {
      openDashboardStates('pb01_detail');
    }
    else if (entitySubType == 'LWL02') {
      openDashboardStates('lwl02_detail');
    }
    else if (entitySubType == 'LPS8N') {
      openDashboardStates('lps8n_detail');
    }
    else if (entitySubType == 'LHT65N') {
      openDashboardStates('lht65n_detail');
    }
    else if (entitySubType == 'S31b') {
      openDashboardStates('s31b_detail');
    }
  });

function openDashboardStates(statedId) {
  var stateParams = widgetContext.stateController.getStateParams();
  //console.log(stateParams)
  var params = {
    entityId: entityId,
    entityName: entityName
  };
  widgetContext.stateController.updateState(statedId, params, false);
}

Add device：Implementation function: Add device


let $injector = widgetContext.$scope.$injector;
let customDialog = $injector.get(widgetContext.servicesMap.get('customDialog'));
let deviceService = $injector.get(widgetContext.servicesMap.get('deviceService'));
let attributeService = $injector.get(widgetContext.servicesMap.get('attributeService'));

openAddDeviceDialog();

function openAddDeviceDialog() {
    customDialog.customDialog(htmlTemplate, AddDeviceDialogController).subscribe();
}

function AddDeviceDialogController(instance) {
    let vm = instance;

    vm.addDeviceFormGroup = vm.fb.group({
      deviceName: ['', [vm.validators.required]],
      deviceType: ['', [vm.validators.required]],
      deviceLabel: [''],
      attributes: vm.fb.group({
          latitude: [null],
          longitude: [null]
      })
    });

    vm.cancel = function() {
        vm.dialogRef.close(null);
    };

    vm.save = function() {
        vm.addDeviceFormGroup.markAsPristine();
        let device = {
            name: vm.addDeviceFormGroup.get('deviceName').value,
            type: vm.addDeviceFormGroup.get('deviceType').value,
            label: vm.addDeviceFormGroup.get('deviceLabel').value
        };
        deviceService.saveDevice(device).subscribe(
            function (device) {
                saveAttributes(device.id).subscribe(
                    function () {
                        widgetContext.updateAliases();
                        vm.dialogRef.close(null);
                    }
                );
            }
        );
    };

    function saveAttributes(entityId) {
        let attributes = vm.addDeviceFormGroup.get('attributes').value;
        let attributesArray = [];
        for (let key in attributes) {
            attributesArray.push({key: key, value: attributes[key]});
        }
        if (attributesArray.length > 0) {
            return attributeService.saveEntityAttributes(entityId, "SERVER_SCOPE", attributesArray);
        } else {
            return widgetContext.rxjs.of([]);
        }
    }
}
4.1.2.2.3 Asset Alarm:

Data:


4.1.2.3、Configure the first layer menu interface

4.1.2.3.1 Map:

Data:


Actions:The map interface has two actions, among which Select supermarket can refresh the device list and related alarms on the right side to enter the location, and Supermarket_detail can jump to the second level physical interface to view the details of the location based on the selected location


Select supermarket:Implementation function: Refresh the side page

var params = widgetContext.stateController.getStateParams();
var selectedSupermarket = params['selectedSupermarket'];
if (selectedSupermarket && selectedSupermarket.entityId.id === entityId.id) {
    params['selectedSupermarket'] = null;
} else {
    params['selectedSupermarket'] = { entityId: entityId, entityName: entityName, entityLabel: entityLabel };
}
widgetContext.stateController.updateState(null, params);


Supermarket_detail:Implementation function: Jump to the asset details page

var params = JSON.parse(JSON.stringify(widgetContext.stateController.getStateParams()));
params['selectedSupermarket'] = {
        entityId: entityId,
        entityName: entityName,
        entityLabel: entityLabel,
};
params['targetEntityParamName'] = 'selectedSupermarket';
params['selectedDevice'] = null;

widgetContext.stateController.openState('svgmap', params);


  • In this demo, exclusive map icons were set as follows:

var res = {
    url: images[0],
    size: 66
};
return res;


4.1.2.3.2 Asset List:

Data:


Actions:The Assets List interface has an action, which is the same as the Supermarket_details in the Map. You can jump to the second level entity interface to view the details of the selected location based on its location



4.1.2.3.3 All Alarms:


4.2 Alarm configuration details

4.2.1 High temperature

Creat:


Clear:


4.2.2 Low Temperature

Creat:


Clear:


4.2.3 High humidity

Creat:


Clear:


4.2.4 Low humidity

Creat：


Clear：


4.2.5 Low voltage

Creat：


Clear：


4.2.6 Device Disconnected

Creat：


Clear：


4.3 Rule chain configuration details


Script：Email configuration for sending device alarm information


function locatime(timenumber){
    var date = new Date(timenumber)
    return date.toLocaleDateString() + ' ' + date.toLocaleTimeString()
}
var name = msg.name
var devicename = msg.originatorName
var label = msg.originatorLabel
var status = msg.status
var detaildata =JSON.parse(msg.details.data)
var tempswitch

if (name != "Device Disconnected") {
    //detaildata=JSON.parse(msg.details.data)
    if (detaildata.Temperature_alarm_switch == true) {
        tempswitch = "open"
    } else {
        tempswitch = "close"
    }
    var humswitch
    if (detaildata.Humidity_alarm_switch == true) {
        humswitch = "open"
    } else {
        humswitch = "close"
    }
    var batswitch
    if (detaildata.Voltage_alarm_switch == true) {
        batswitch = "open"
    } else {
        batswitch = "close"
    }
    var str2 = "<p>-- Temperature alarm switch status: " +
        tempswitch + "</p>" +
        "<p>-- Humidity alarm switch status: " + humswitch +
        "</p>" +
        "<p>-- Voltage alarm switch status: " + batswitch
}

if (name == "High Temperature" && status ==
    "ACTIVE_UNACK") {
    var emailstr =
        "<div><p><span style='color: black; font-weight: bold'>" +
        "Device " + label + " has alarm:</span></p>" +
        "<p><span style='color: red; font-weight: bold'>-- High Temperature Alarm</span></p>" +
        "<p>-- Current Temperature : " + detaildata
        .TempC_SHT + "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"
    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "Low Temperature" && status ==
    "ACTIVE_UNACK") {
    var emailstr =
        "<div><p><span style='color: black; font-weight: bold'>" +
        "Device " + label + " has alarm:</span></p>" +
        "<p><span style='color: red; font-weight: bold'>-- Low Temperature Alarm</span></p>" +
        "<p>-- Current Temperature : " + detaildata
        .TempC_SHT + "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"

    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };

} else if (name == "Device Disconnected" && status ==
    "ACTIVE_UNACK") {
    var time1 = locatime(Number(detaildata.lastActivityTime))
    //var time1 = detaildata.lastActivityTime
    // var chazhi = parseInt((detaildata.inactivityAlarmTime-detaildata.lastActivityTime)/1000/60)
    // var emailstr =
    //     "<div><p><span style='color: red; font-weight: bold'>" +
    //     "Device " + label + " has Alarm</span></p><p>Last activity time: "+time1+"</p><p>Last Uplink: 21"+"minutes ago</p></div>"

    var emailstr ="Device " + label + " has Alarm##Last activity time: "+time1+"##Last Uplink: 21minutes ago"
    var newType = "POST_TELEMETRY_REQUEST"
    return {
        msg:emailstr,
        metadata: metadata,
        msgType: newType
    }
} else if (name == "High humidity" && status ==
    "ACTIVE_UNACK") {
    var emailstr =
        "<div><p><span style='color: black; font-weight: bold'>" +
        "Device " + label + " has alarm:</span></p>" +
        "<p><span style='color: red; font-weight: bold'>-- High Humidity Alarm</span></p>" +
        "<p>-- Current Temperature : " + detaildata
        .Hum_SHT + "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"

    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "Low humidity" && status ==
    "ACTIVE_UNACK") {
    var emailstr =
        "<div><p><span style='color: black; font-weight: bold'>" +
        "Device " + label + " has alarm:</span></p>" +
        "<p><span style='color: red; font-weight: bold'>-- Low Humidity Alarm</span></p>" +
        "<p>-- Current Temperature : " + detaildata
        .Hum_SHT + "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"

    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "Low voltage" && status ==
    "ACTIVE_UNACK") {
    var emailstr =
        "<div><p><span style='color: black; font-weight: bold'>" +
        "Device " + label + " has alarm:</span></p>" +
        "<p><span style='color: red; font-weight: bold'>-- Low Voltage Alarm</span></p>" +
        "<p>-- Current Temperature : " + detaildata.BatV +
        "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"

    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "High Temperature" && status ==
    "CLEARED_UNACK") {
    var emailstr =
        "<div><p><span style='color: green; font-weight: bold'>Device " +
        label +
        " High Temperature Alarm Cleared</span></p>" +
        "<p>-- Current Temperature : " + detaildata
        .TempC_SHT + "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"

    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "Low Temperature" && status ==
    "CLEARED_UNACK") {
    var emailstr =
        "<div><p><span style='color: green; font-weight: bold'>Device " +
        label +
        " Low Temperature Alarm Cleared</span></p>" +
        "<p>-- Current Temperature : " + detaildata
        .TempC_SHT + "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"

    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "High humidity" && status ==
    "CLEARED_UNACK") {
    var emailstr =
        "<div><p><span style='color: green; font-weight: bold'>Device " +
        label + " High Humidity Alarm Cleared</span></p>" +
        "<p>-- Current Temperature : " + detaildata
        .Hum_SHT + "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"

    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "Low humidity" && status ==
    "CLEARED_UNACK") {
    var emailstr =
        "<div><p><span style='color: green; font-weight: bold'>Device " +
        label + " Low Humidity Alarm Cleared</span></p>" +
        "<p>-- Current Temperature : " + detaildata
        .Hum_SHT + "</p><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"
    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "Low voltage" && status ==
    "CLEARED_UNACK") {

    var emailstr =
        "<div><p><span style='color: green; font-weight: bold'>Device " +
        label + " Low Voltage Alarm Cleared</span></p>" +
        "<p>-- Current Temperature : " + detaildata.BatV +
        "</p><br><br>" +
        "<p>Device Configure:</p>" +
        "<p>-- Temperature Threshold : min: " + detaildata
        .Low_temperature_alarm + ", max: " + detaildata
        .High_temperature_alarm + "</p>" +
        "<p>-- Humidity Threshold: min: " + detaildata
        .Low_humidity_alarm + ", max:" + detaildata
        .High_humidity_alarm + "</p>" +
        "<p>-- Battery threshold: min: " + detaildata
        .Low_voltage_alarm + "</p>" + str2 + "</div>"

    return {
        msg: {
            "data": emailstr
        },
        metadata: metadata,
        msgType: msgType
    };
} else if (name == "Device Disconnected" && status ==
    "CLEARED_UNACK") {
     var time1 = locatime(Number(detaildata.lastActivityTime))
    //var time1 = detaildata.lastActivityTime
    // var chazhi = parseInt((detaildata.inactivityAlarmTime-detaildata.lastActivityTime)/1000/60)
    // var emailstr =
    //     "<div><p><span style='color: green; font-weight: bold'>" +
    //     "Device " + label + " has Alarm Cleared</span></p><p>Last activity time: "+time1+"</p></div>"
    var emailstr ="Device " + label + " has Alarm Cleared##Last activity time: "+time1
    var newType = "POST_TELEMETRY_REQUEST"
    return {
        msg: emailstr,
        metadata: metadata,
        msgType: newType
    }
}

Generate Report：


5.other
